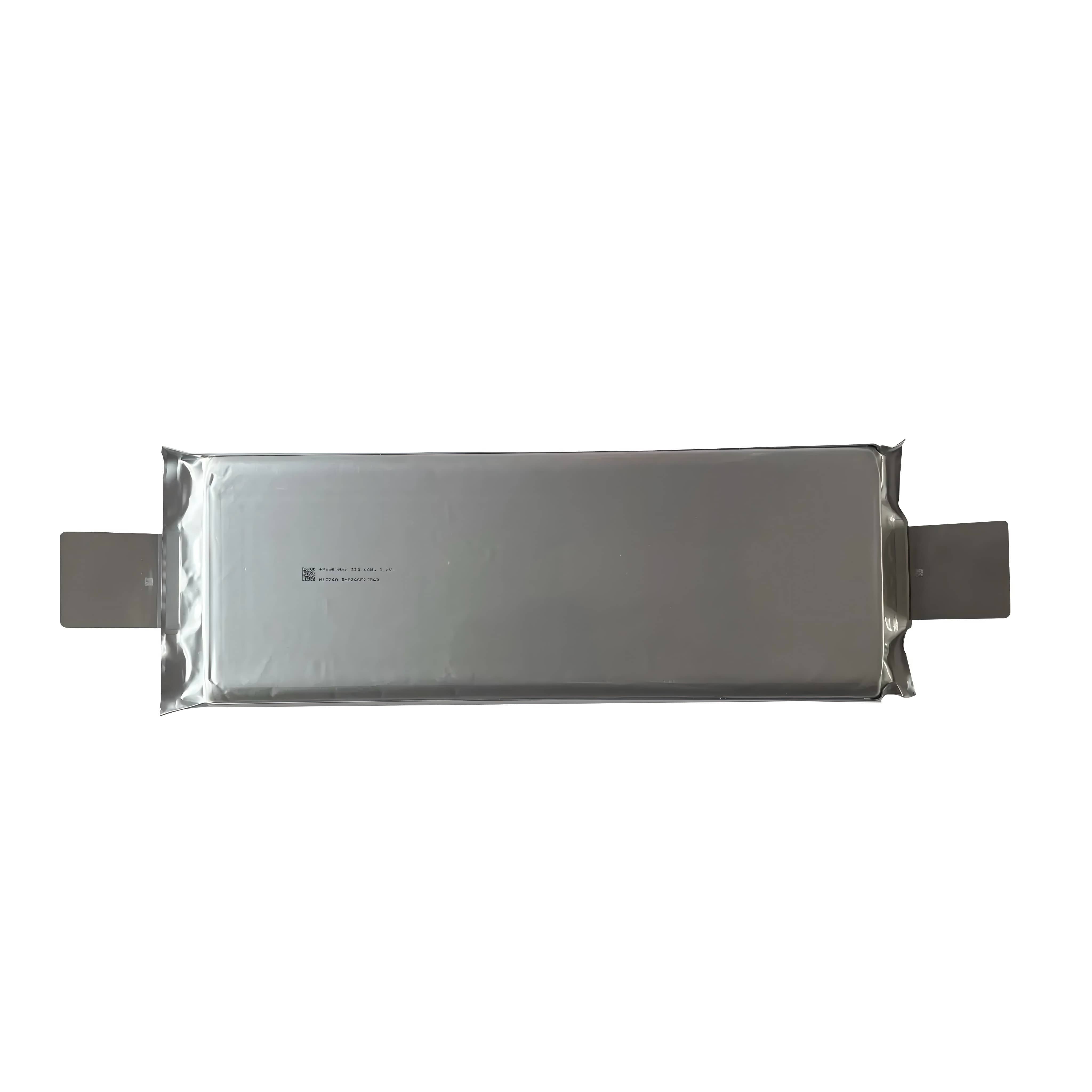

CATL M1C24A 3.2V 100Ah LiFePO4 Battery Pouch Cell

Product Details:

Place of Origin: China

Brand Name: CATL

Certification: GBT36276/UL9540A/IEC62619 /UL1973/UN38.3

Model Number: M1C24A

Payment & Shipping Terms:

Retail Price: /

Wholesale Price: Negotiable

Packaging Details: /

Payment Terms: T/T

  • Nominal Capacity: 100Ah Nominal Voltage: 3.2V
  • Internal Impedence: - Operating Votage: -
  • Dimension: T22.5*W122.7*L360.5mm Battery Weight: 1890g

Product Description

The CATL M1C24A 3.2V 100Ah LiFePO4 pouch cell offers a long cycle life, high energy density, and a wide operating temperature range. It is suitable for electric bicycles, scooters, electric vehicles, power systems, and solar energy storage systems.

We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!

Specification

Items Parameters
Battery Type LiFePO4 Pouch Cell
Rated Capacity (Ah@0.5CP) 100
Rated Energy (Wh@0.5CP) 320
Rated voltage(V) 3.2
Rated charge and discharge power (W) 160W (0.5CP)
Maximum continuous charge and discharge power (W) 320W(1.0CP)
Operating temperature (℃) Charge:-10~55;
Discharge:-20~55
Size(mm) T22.5*W122.7*L360.5mm
Weight(g) 1890
RTE (0.5CP/0.5CP) ≥94%
Cycle life(@0.5C) 6000@80%SOH
Design life (years) 10
Authenticate GBT36276/UL9540A/IEC62619/
UL1973/UN38.3

Dimension and Details

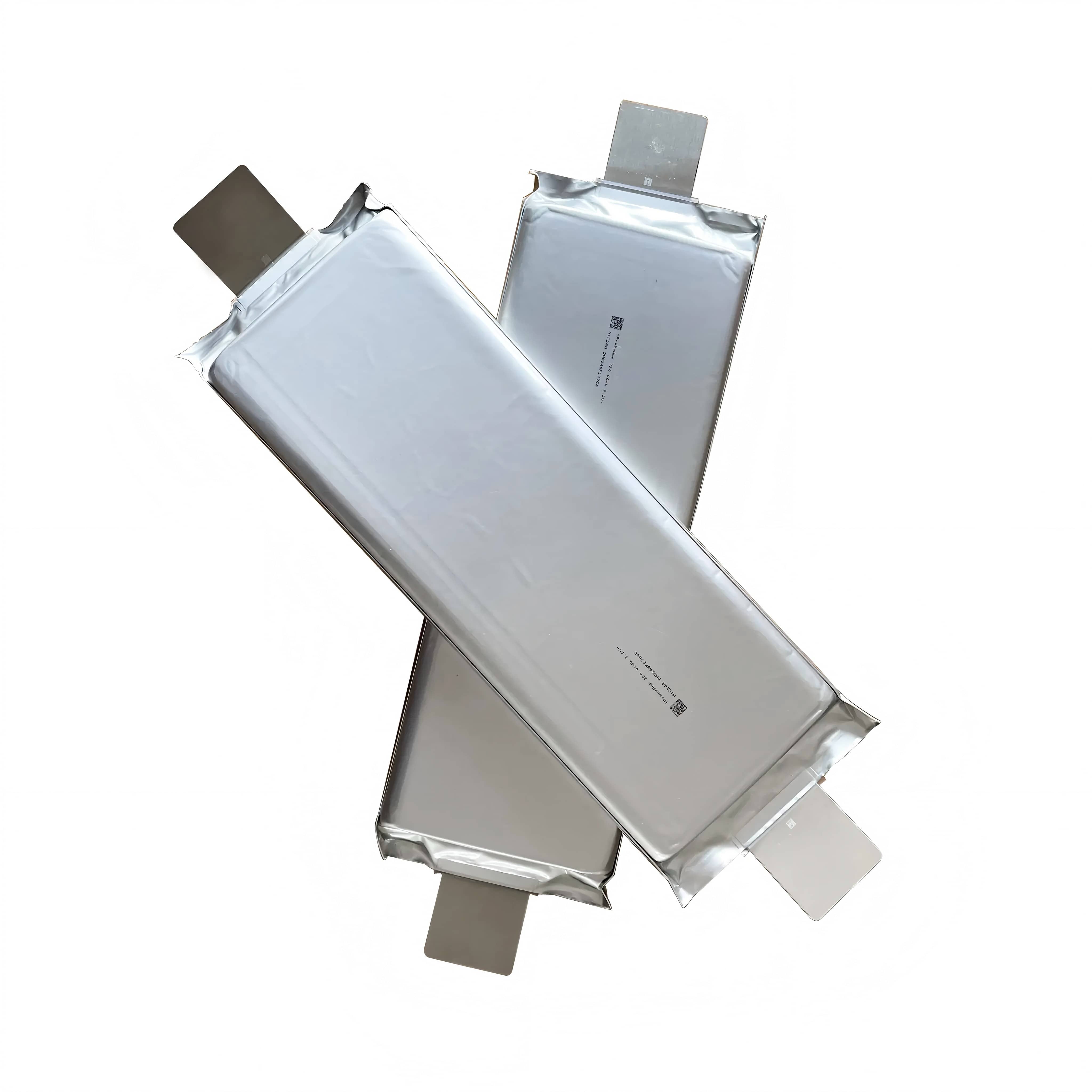

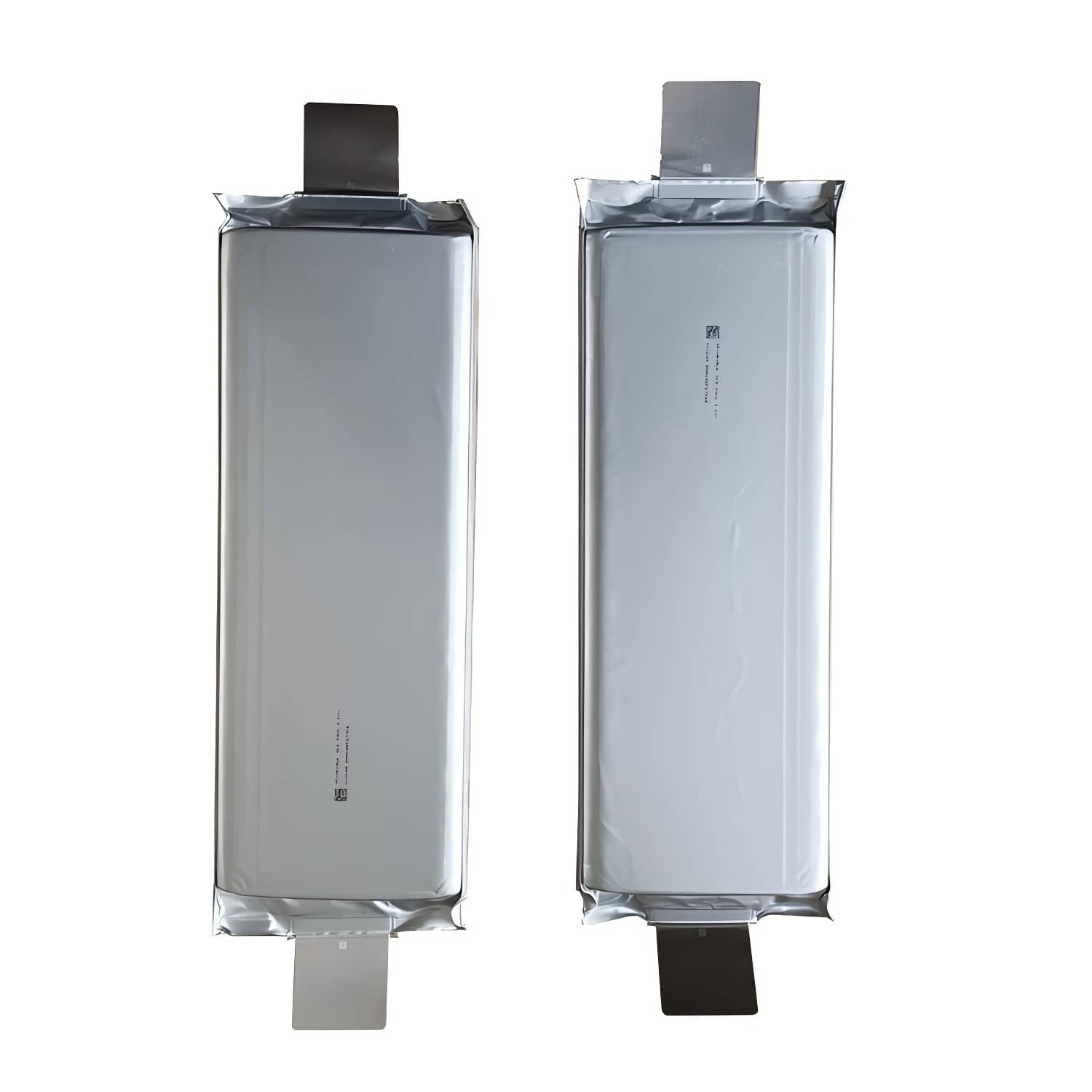

catl lifepo4 pouch cell 100ah
catl lifepo4 pouch cell 100ah

Note

1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.

2.We will test all battery voltage, internal resistance and capacity before delivery.

3.The price comes with busbars and bolts, a battery will come with a busbar and bolt set (for example, if you buy a 4-piece battery, we will send you 4-piece cells with 4-piece busbars and nuts and bolts 8 pieces studs) If you need more, please contact us online Thank you!

4.100% Eco-friendly, will not cause pollution pressure to the environment
