CATL CBC00 3.2V 314Ah LiFePO4 Cell For ESS
Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: CBC00
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 314Ah Nominal Voltage: 3.2v
- Internal Impedence: 0.17±0.05mΩ Operating Votage: 2.5~3.65V
- Dimension: 174.26±0.8*204.41±0.8*71.65±0.8mm Battery Weight: 5.49±0.30Kg
Product Description
CATL CBC00 3.2V 314Ah LiFePO4 Cell with a lifespan of up to 7000 cycles, making it ideal for a wide range of applications, including Electric energy storage、Industrial and commercial energy storage、Household energy storage、Ship energy storage、Solar Energy Storage Systems.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Specification
Parameter | Specification |
---|---|
Typical capacity | 314 Ah |
Typical Energy | 1004.8Wh |
Operating voltage | 2.5~3.65V, T>0°C 2.0~3.65V, T≤0°C |
Impedance (1KHz) | 0.17±0.05mΩ, Fresh cell (~30%SOC) |
Shipping capacity | 99±1Ah |
Standard charge power | 0.5P, 25±2°C |
Max. continuous charge power | 0.5P |
Standard charge voltage | Cell max voltage 3.65V |
Standard discharge power | 0.5P, 25±2°C |
Maximum discharge power (continuous) | 0.5P |
Discharge cut-off voltage | 2.5V, T>0°C 2.0V, T≤0°C |
Residual capacity loss | Per month ≤3.5%, First Month |
Operating temperature | Charging: 0~60°C, Discharging: -20~60°C |
Cell Weight | 5.49±0.30Kg |
Storage temperature | -35~60°C |
Storage ambient humidity | < 85% ROH, no condensation |
Typical dimension(W*H*T) | 174.26±0.8*204.41±0.8*71.65±0.8mm |
Rest SOC | ≥8% |
Altitude | <5000m |
Cycle performance | 7000 Cycles@70%SOH |

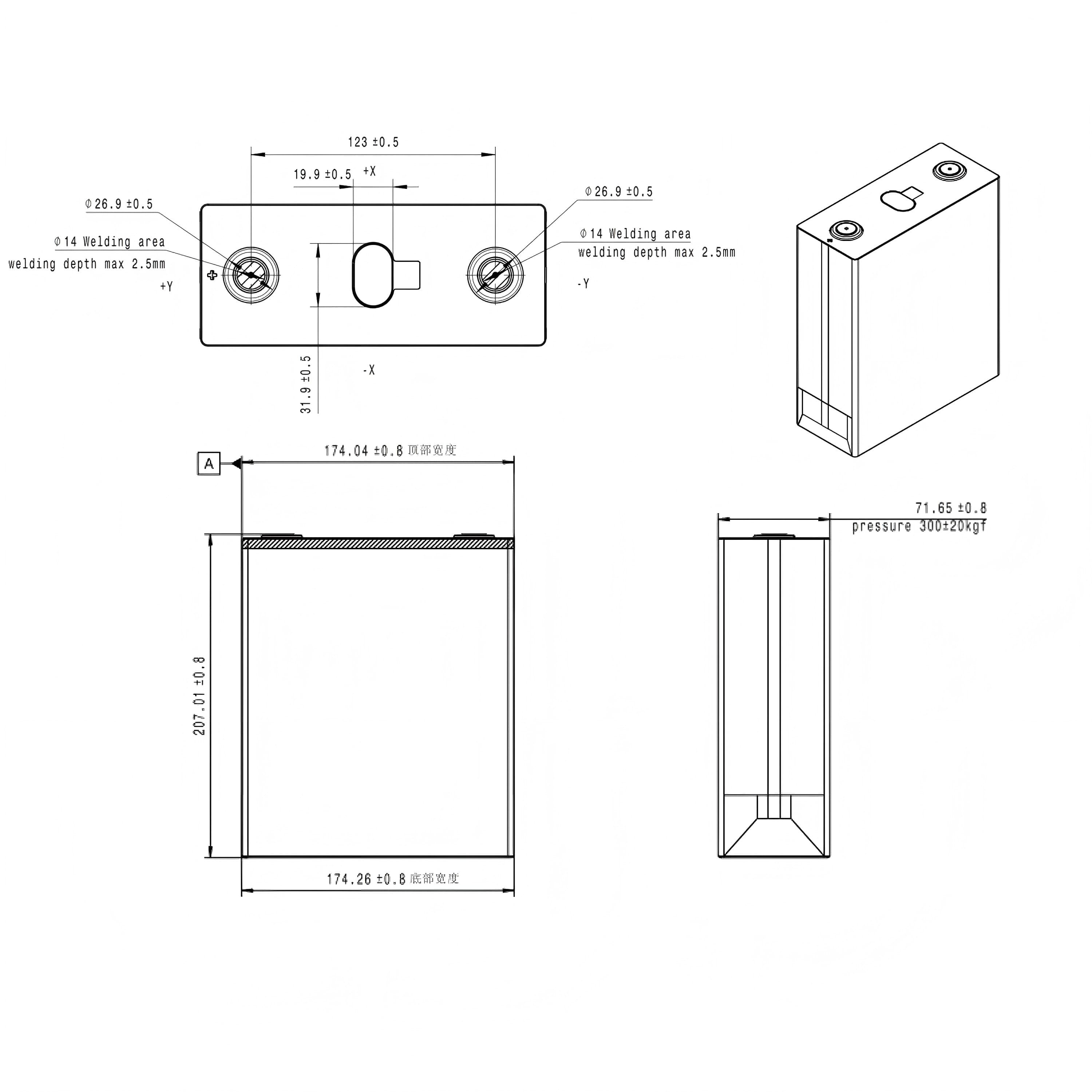

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.

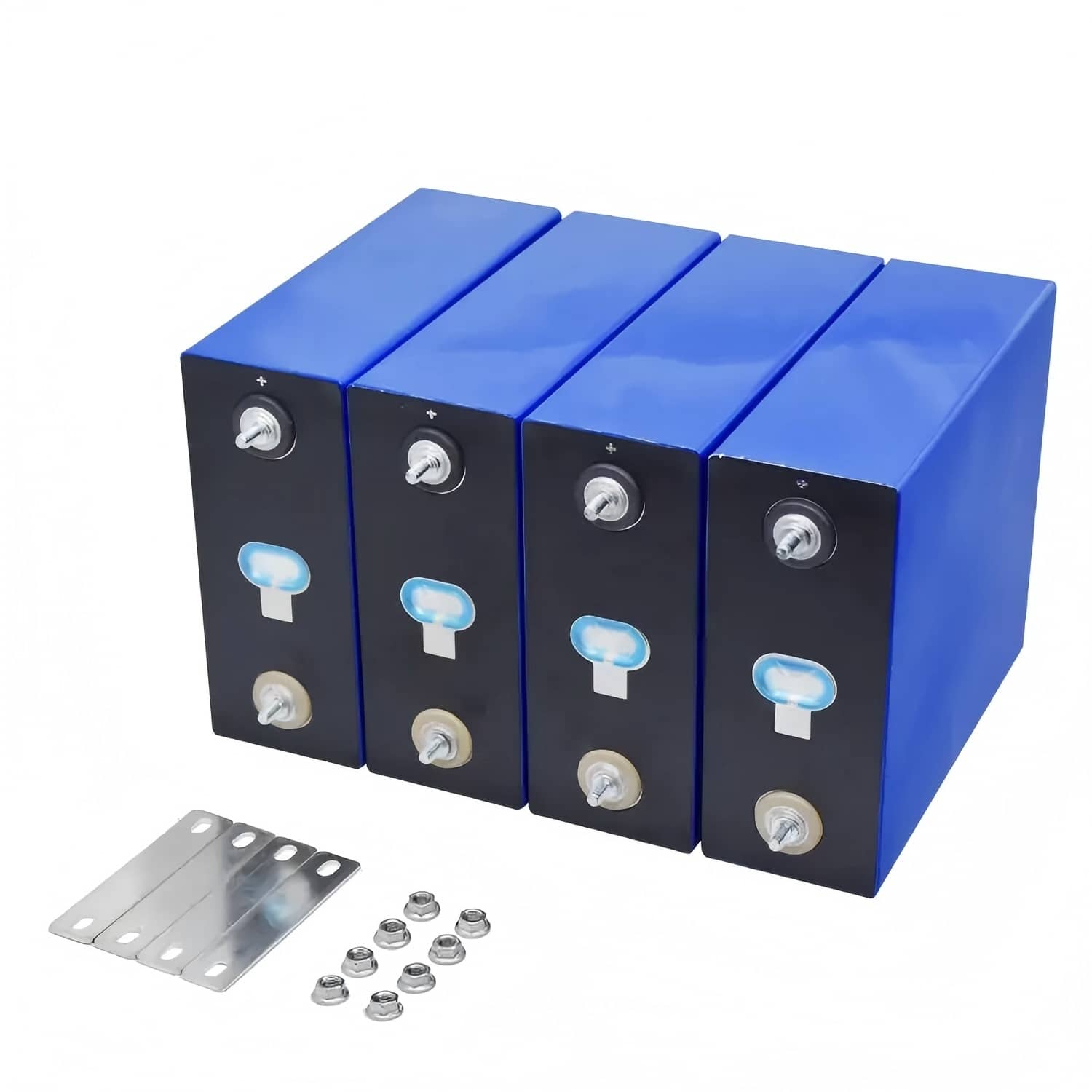

3.The price comes with busbars and bolts, a battery will come with a busbar and bolt set (for example, if you buy a 4-piece battery, we will send you 4-piece cells with 4-piece busbars and nuts and bolts 8 pieces studs) If you need more, please contact us online Thank you!
4.100% Eco-friendly, will not cause pollution pressure to the environment
