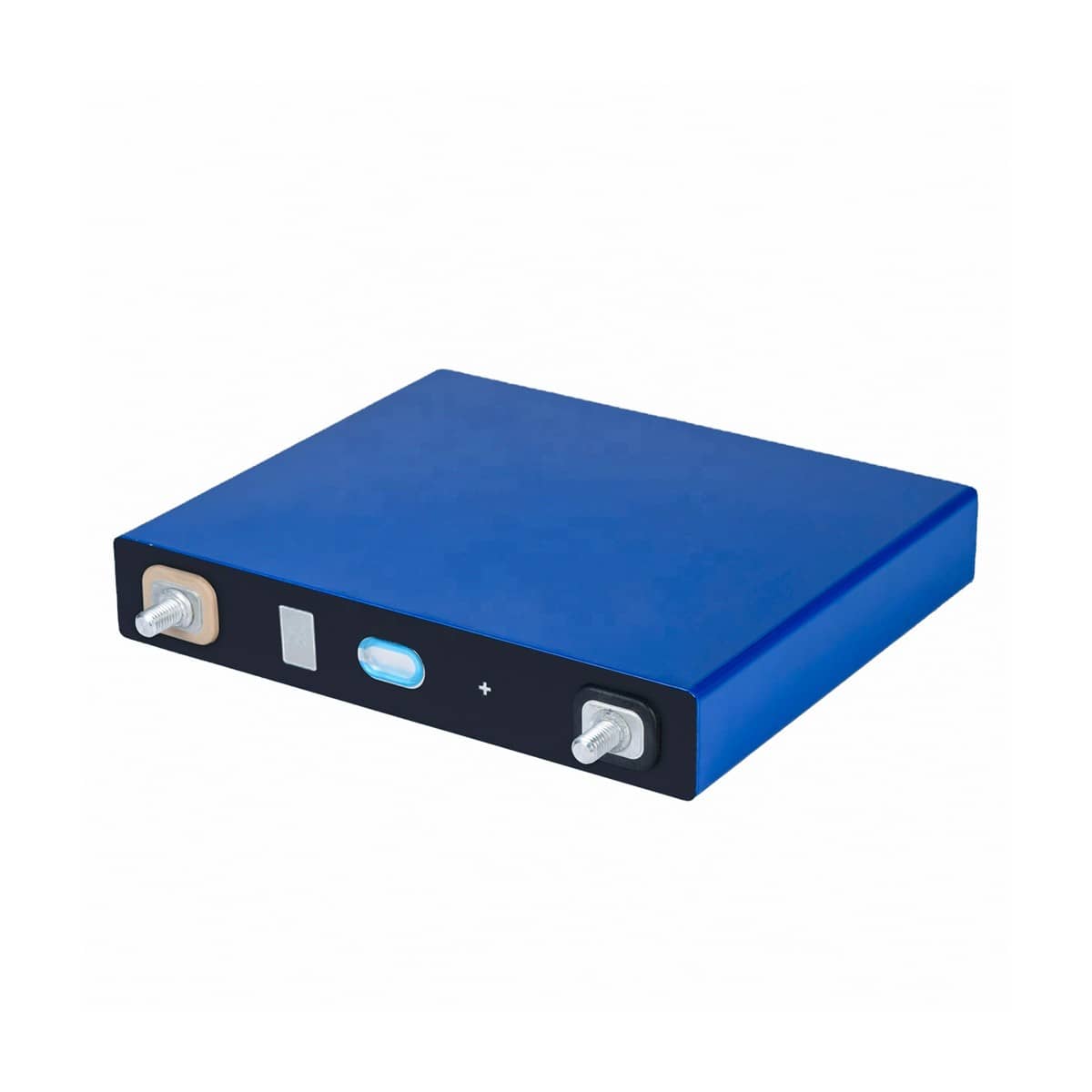

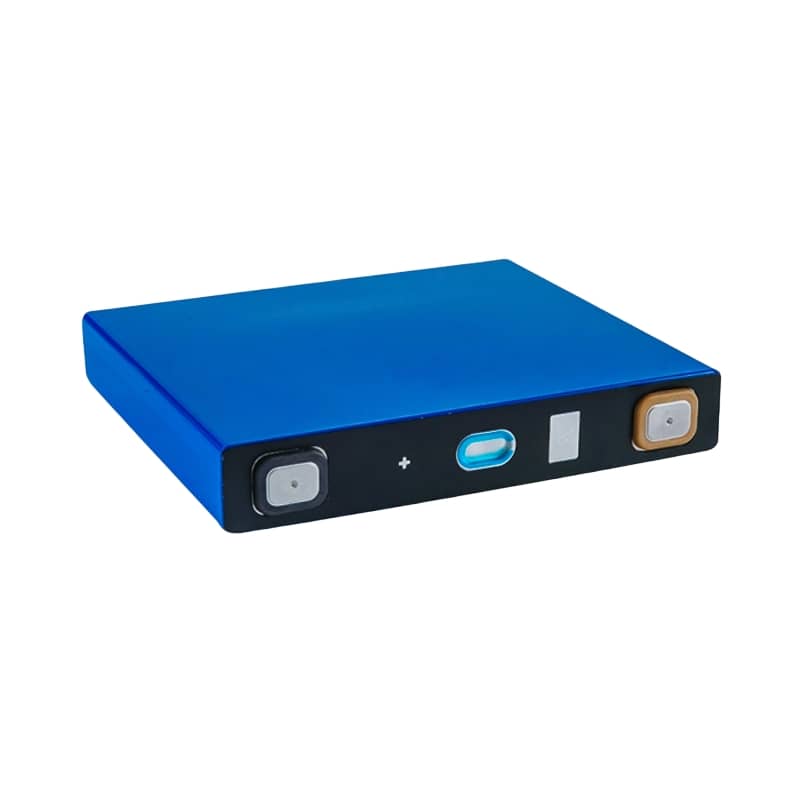

CATL CB260 3.2V 150ah LiFePO4 Battery Prismatic Cell
Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: CB260
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: Cartons
Payment Terms: T/T
- Nominal Capacity: 150ah Nominal Voltage: 3.2V
- Internal Impedence: 0.34±0.05mΩ Operating Votage: 2.5~3.65V
- Dimension: 200.33*207.2*33.4mm Battery Weight: 2.95±0.3Kg
Product Description
100% brand new, grade-A CATL CB260 3.2V 150ah LiFePO4 Battery can meet the needs of high-energy density and long distance travel, as well as safety and reliability. It has been widely applied to battery electroc vehicles(BEV), plug-in hybrid electric vehicels(PHEV), hybrid electric vehicles and energy storage systems.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Specification
| Item | Parameters | Remark |
|---|---|---|
| Nominal voltage | 3.2V | 25±2℃，1C |
| Nominal capacity | 150Ah | 25±2℃，1C |
| Operating voltage | 2.5~3.65V | T>0℃ |
| Internal resistance | 0.34±0.05mΩ | Fresh cell, (30~40%SOC) |
| Shipment capacity | 60±1Ah | |
| Self-discharge rate | ≤3.5% | 25℃, 50%SOC， |
| Operating temperature range |
Charge: 0~60℃ Discharge: -30~60℃ |
|
| Standard charge current |
0.5C | 25±2℃ |
| Max. continuous charge current | 1C | 25±2℃ |
| Charge voltage | 3.65V | |
| Standard discharge current | 75.0A | 25±2℃ |
| Max. continuous discharge current |
150.0A(1C) | |
| Max. pulse discharge current (long pulse) |
300A(2C) | 3 minutes |
| Max. pulse discharge current (short pulse) |
450.0A() | T＜50℃ 60S, SOC>40% 10S, SOC<40% |
| Discharge cut-off voltage | 2.5V 2.0V |
T>0℃ T≤0℃ |
| Cycle life | ≥3500 cycles | 80%DOD |
| Dimension | 200.33*207.2*33.4mm | |
| Weight | 2.95±0.3Kg |

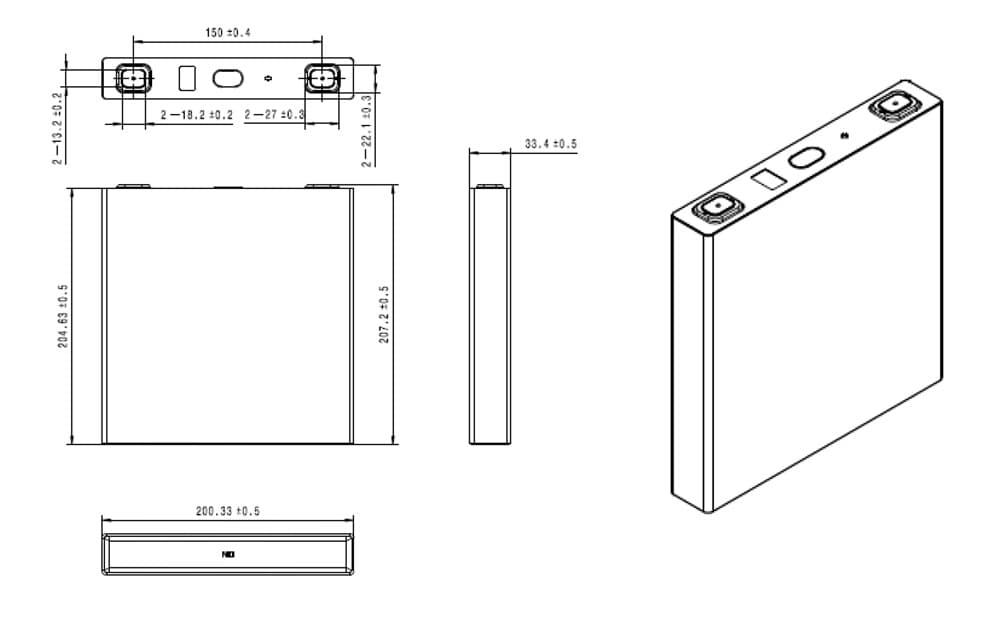

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.The price comes with busbars and bolts, a battery will come with a busbar and bolt set (for example, if you buy a 4-piece battery, we will send you 4-piece cells with 4-piece busbars and nuts and bolts 8 pieces studs) If you need more, please contact us online Thank you!
4.100% Eco-friendly, will not cause pollution pressure to the environment
