CATL NMC 50Ah 3.7V Battery Prismatic Cell
Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: CATL-NCM27E892
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 50Ah Nominal Voltage: 3.65V
- Internal Impedence: ≤0.8mΩ Operating Voltage: 3.0V~4.2V
- Dimension: 148(W)*27(T)*92mm(L) Battery Weight: 0.85Kg
Product Description
The CATL NMC 50Ah 3.7V Battery Prismatic Cell is a lithium ternary battery cell, produced by CATL, it has performed with a high energy density, long cycle life, and low self-discharge rate. It has a wide range of applications like electric vehicles, energy storage systems, UPS systems, and portable devices such as power banks and electric tools. It is also lightweight and compact, making it easy to integrate into your device.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Item | Parameters | |
|---|---|---|
| Nominal Capacity | 50Ah | |
| Nominal Voltage | 3.65V | |
| Internal Resistance | ≤0.8mΩ | |
| Discharge Cut-off Voltage | 3.0V | |
| Standard Charge Current | 10A | |
| Charge Voltage | 4.2V | |
| Max. Charge Voltage | 4.25V | |
| Fast Charge Current | 50A | |
| Max. Charge Current | 50A | |
| Max. Discharge Current | 100A | |
| Weight | 0.85Kg | |
| Operating Temperature | Charge | 0~+45℃ |
| Discharge | -20~+60℃ | |
| Storage Temperature | ≤1 month | -20~+45℃ |
| ≥6 months | -20~+35℃ | |
| Dimensions | 148(W)*27(T)*92mm(L) | |

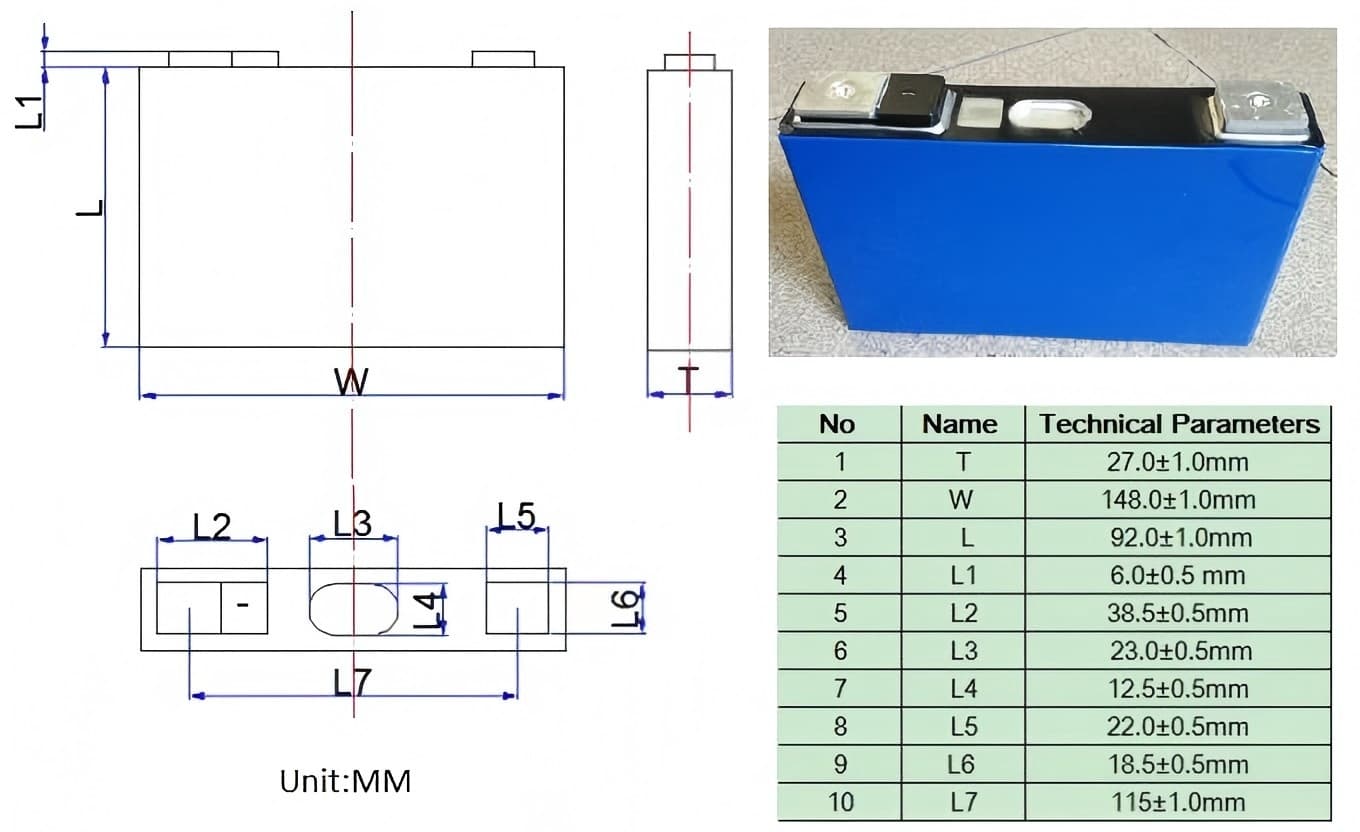

Dimension and Details
Note

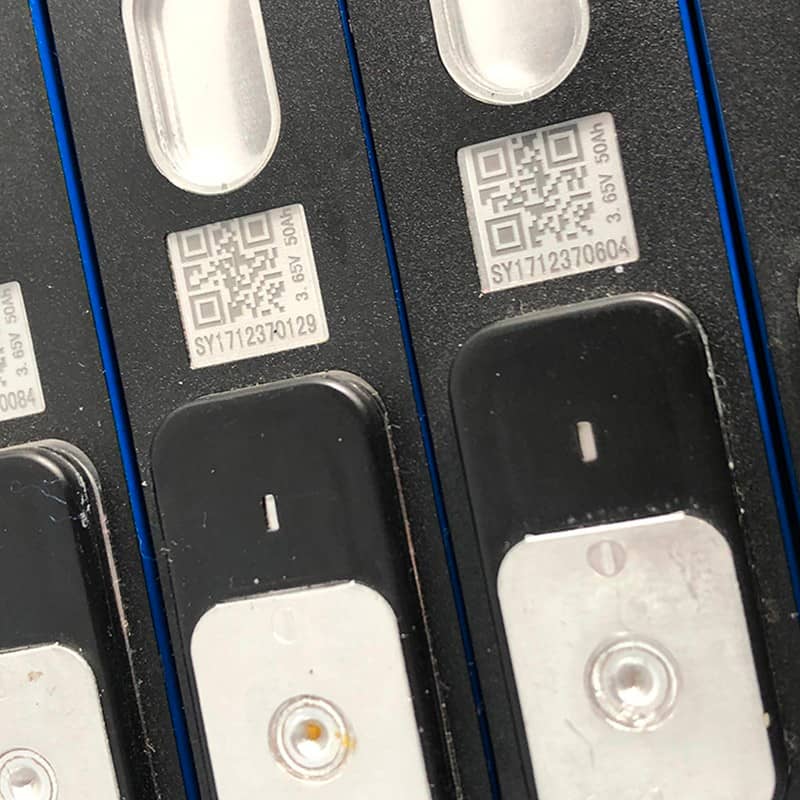

1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
