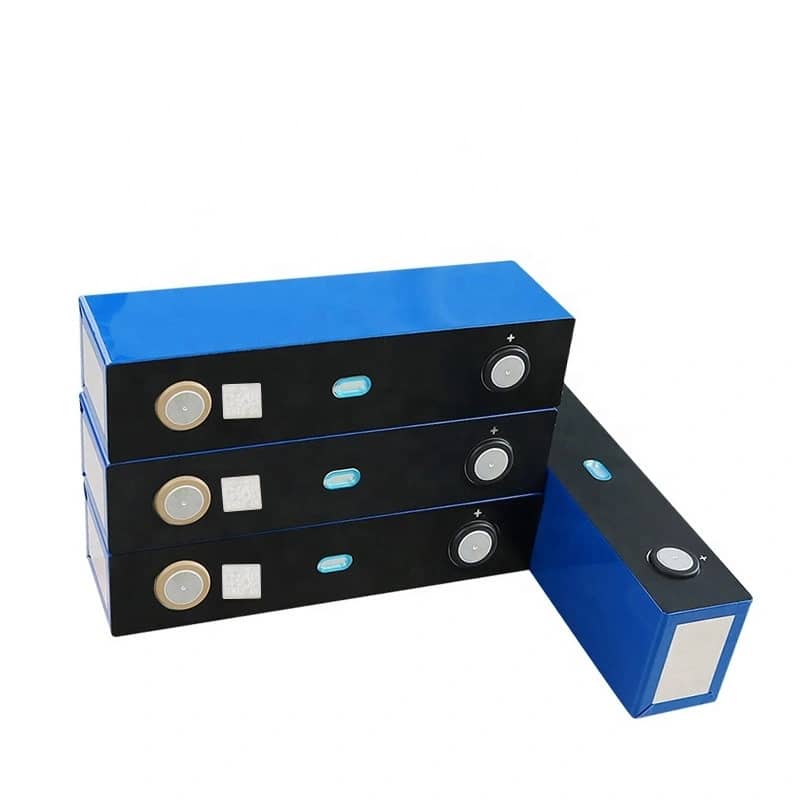

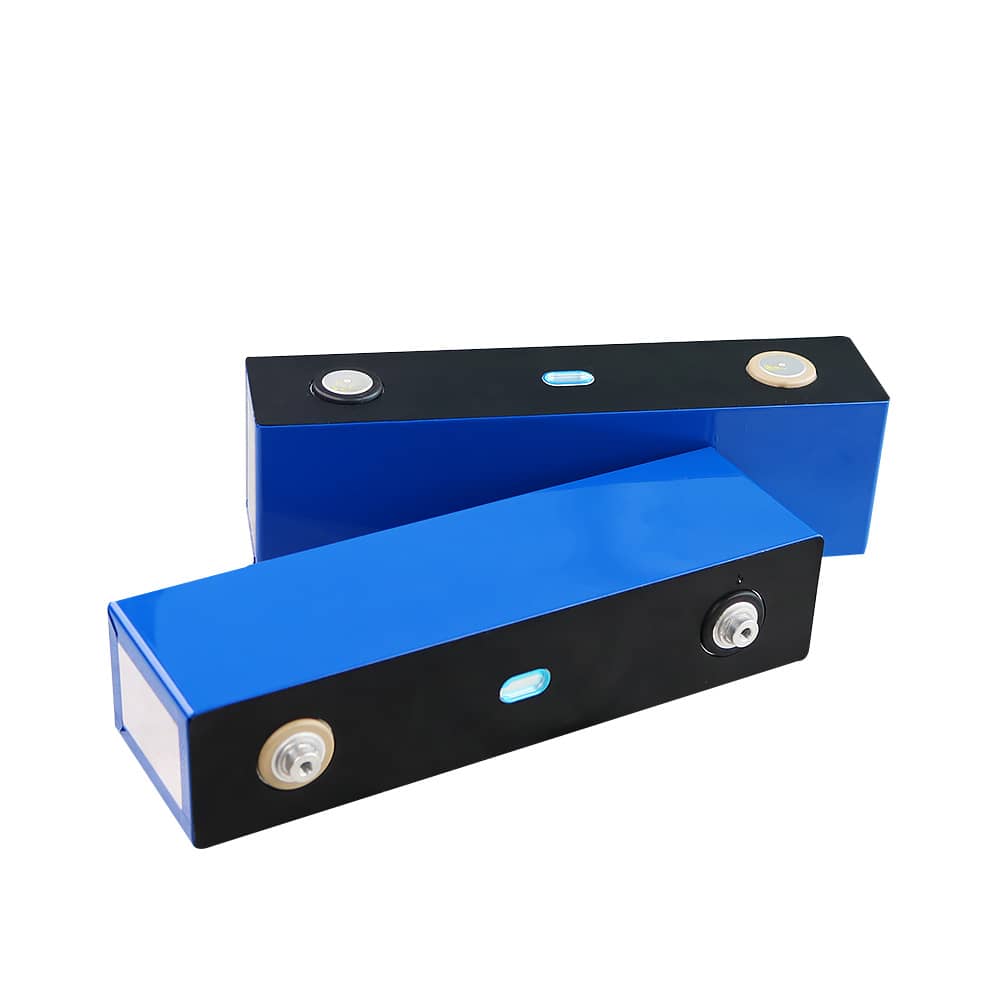

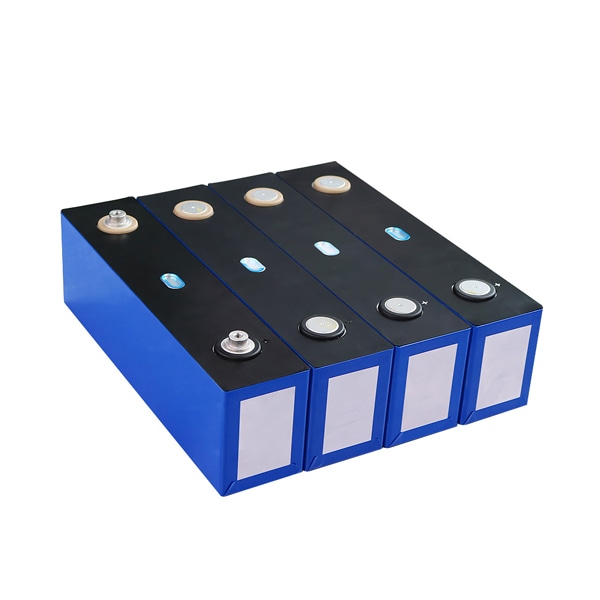

CATL LFP6228082 3.2V 161Ah LiFePO4 Prismatic Battery Cell Grade A
Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: LFP6228082
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 161Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.4Ω Operating Votage: 2.5V-3.65V
- Dimension: 280*82*62mm Battery Weight: 3.1±0.3kg
Product Description
CATL LFP6228082 3.2V 161Ah LiFePO4 battery cells, offers a long cycle life, high energy density, and a wide operating temperature range, for RV, EV, E-boat, yachts, golf carts, UPS, solar energy systems, etc.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Specification
| Items | Parameters |
|---|---|
| Model | LFP6228082 |
| Battery Type | Lithium Iron Phosphate(LiFePO4 or LFP) |
| Nominal voltage | 3.2V |
| Operational voltage | 2.5V – 3.65V |
| Nominal capacity | 161Ah |
| Impedance (1KHz) | ≤0.4±0.05mΩ |
| Weight | 3.1±0.3kg |
| Fast charge current | 161A(1C) |
| Max. continous charge/discharge current | 161A(1C) |
| Dimensions (mm) | 280*82*62±0.8mm |
| Terminal | M6 Laser Welding Screw Hole |
| Cycle performance | ≥3500 Cycles |
| Charging temperature | 0℃~50℃ |
| Discharging temperature | -20℃~55℃ |

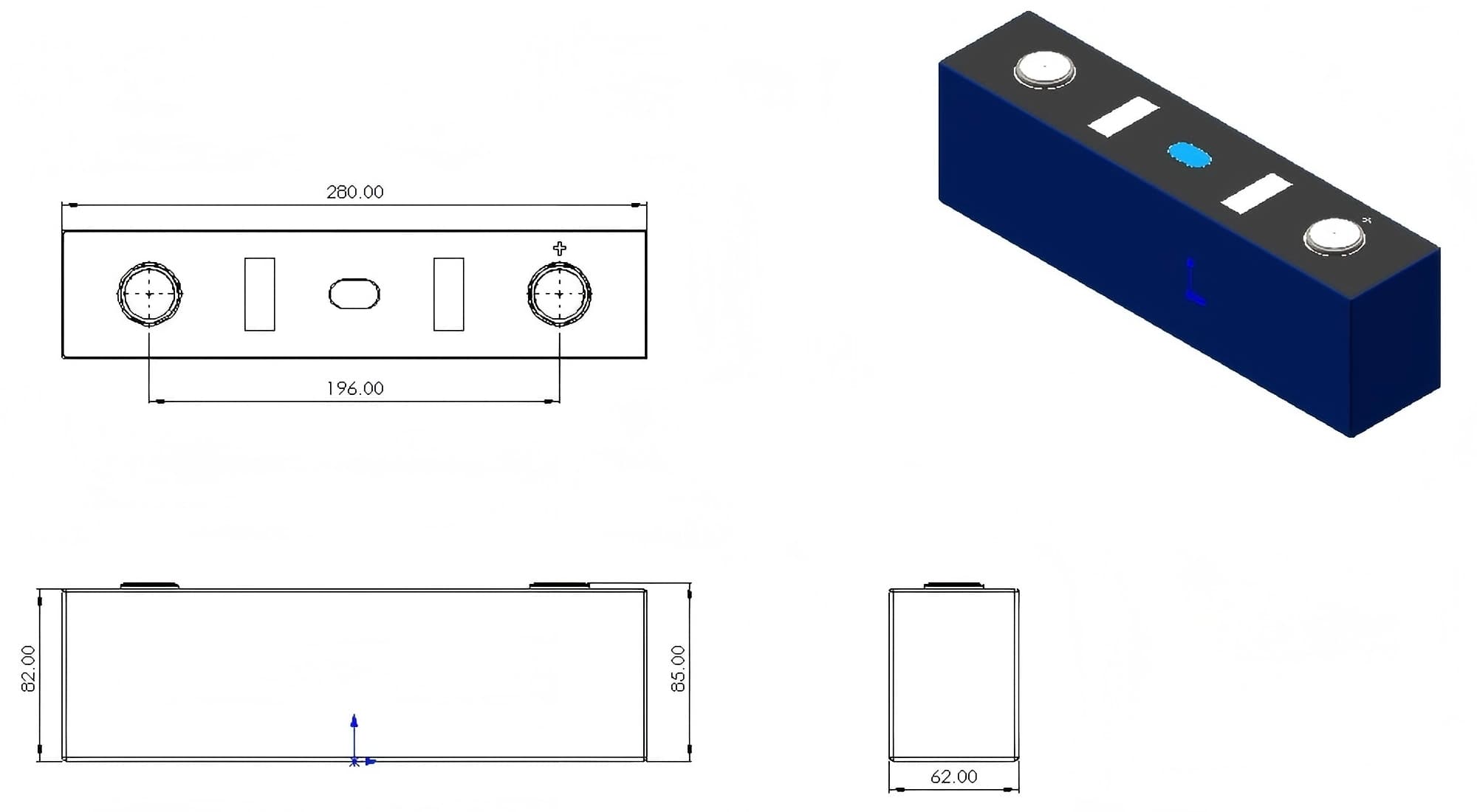

Dimension and Details

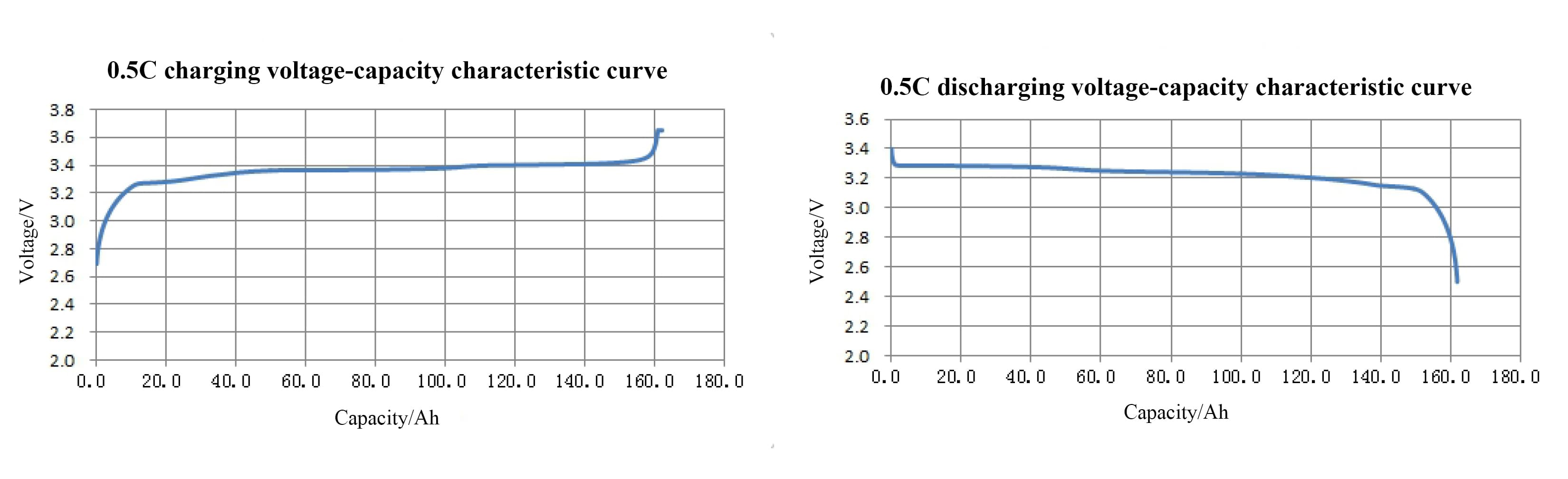

Electrical Performance Diagram
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.The price comes with busbars and bolts, a battery will come with a busbar and bolt set (for example, if you buy a 4-piece battery, we will send you 4-piece cells with 4-piece busbars and nuts and bolts 8 pieces studs) If you need more, please contact us online Thank you!
4.100% Eco-friendly, will not cause pollution pressure to the environment
