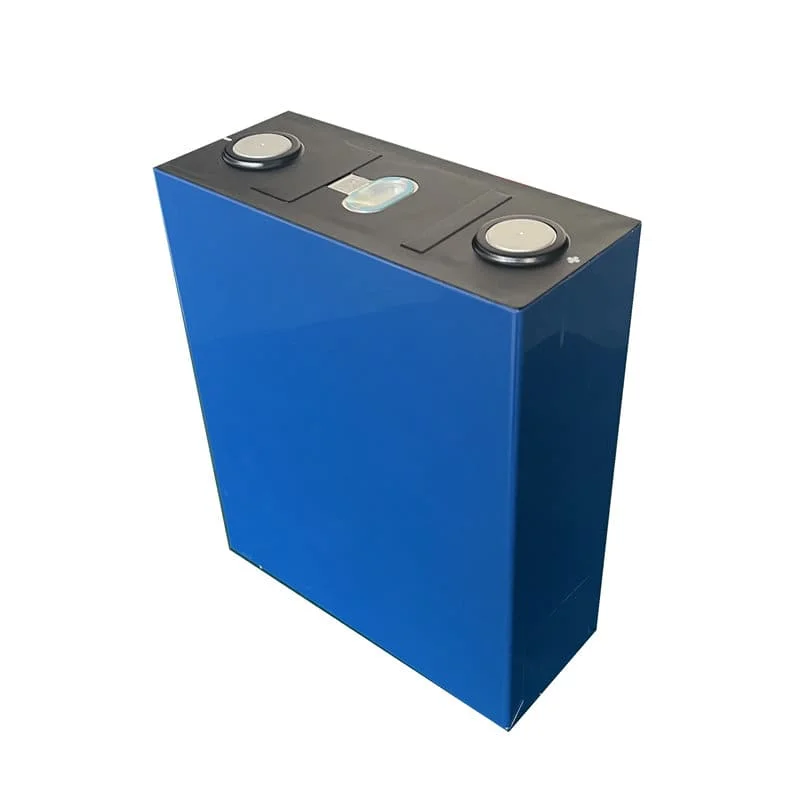

CALB LiFePO4 3.2V 314Ah battery cell L173F314
Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE
Model Number: L173F314
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 314Ah Nominal Voltage: 3.2 V
- Internal Impedence: ≤0.23 mΩ Operating Voltage: 2.5~3.65 V
- Dimension: 174.7*71.46*207.2 Battery Weight: 5.56±0.15 kg
Product Description
The CALB 314ah LiFePO4 cell and the CALB 280ah LiFePO4 cell have the same size, but the CALB 314ah cell can store more power. It has higher energy density. Therefore, many new energy storage projects use 314AH battery cell instead of 280ah battery cell, which can greatly increase the storage capacity without changing the original size.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Items | Parameters | |
|---|---|---|
| Rated Capacity | 314Ah | |
| Rated Voltage | 3.2 V | |
| Rated Energy | 1004.8 Wh | |
| Cell Weight | 5.56±0.15 kg | |
| Mass Energy Density | 180.7Wh/kg | |
| Cell Size | 174.7*71.46*207.2(with terminal) | |
| Volume Energy Density | 394.0 Wh/L | |
| Alternating Current Resistance | ≤0.23 mΩ | |
| Temperature | Charging Temperature | 0~55°C |
| Discharging Temperature | -30~55°C | |
| Storage Temperature | -40~60°C | |
| Voltage Range | 2.5~3.65 V 0℃＜T≤60℃; | |
| 2.0~3.65 V -30℃≤T≤0℃; | ||

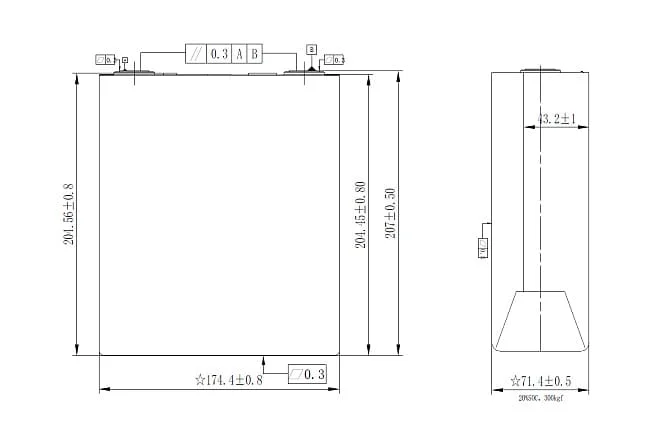

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
