CALB 3.7V 147Ah Lithium ion NMC Battery Cell L221N147A
Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE
Model Number: L221N147A
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 147Ah Nominal Voltage: 3.71V
- Internal Impedence: ＜0.4mΩ Operating Voltage: 2.5~4.35V
- Dimension: 220.8*44.46*105.2mm Battery Weight: 2.34±0.025kg
Product Description
CALB 3.7V 147Ah Lithium ion NMC Battery Cell L221N147A is a power lithium-ion battery designed for the electric vehicle market. It belongs to the medium-nickel, high-voltage ternary system and is designed to provide a power solution for pure electric vehicles with a range of over 600 kilometers.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Items | Parameter | Remarks |
|---|---|---|
| Rated Capacity | 147Ah | 1C Discharge |
| 150Ah | Standard Discharge | |
| Rated Voltage | 3.71V | 1C Discharge |
| 3.76V | Standard Discharge | |
| Rated Energy | 545.37Wh | 1C Discharge |
| 564.00Wh | Standard Discharge | |
| Mass Energy Density | 241Wh/kg | Standard Discharge |
| AC Impedance Resistance | ＜0.4mΩ | 70%SOC, Room Temperature |
| Temperature Range | Charging | -20~55°C |
| Discharging | -30~55°C | |
| Storage | -40~60°C | |
| Fast Charging Time | ≤20 min | 30-80% SOC |
| Voltage Range | 2.8~4.35V | 0℃≤T≤55℃ |
| 2.5~4.35V | -30℃≤T＜0℃ | |
| Dimensions | 220.8*44.46*105.2mm | |
| Cell Weight | 2.34±0.025kg |
Dimension and Details
Related Battery Module Product

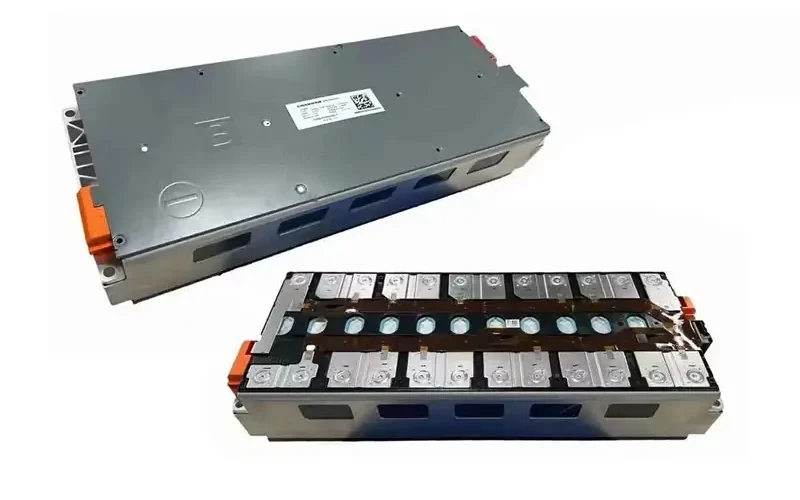

To better utilize the 147Ah NMC battery cell in electric vehicles, CALB has launched a 590 battery module using this battery cell.
The battery module is 1P12S. It weighs 30.25±0.3kg.
Battery module dimension (L*W*H) is 595*225*110mm.
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
