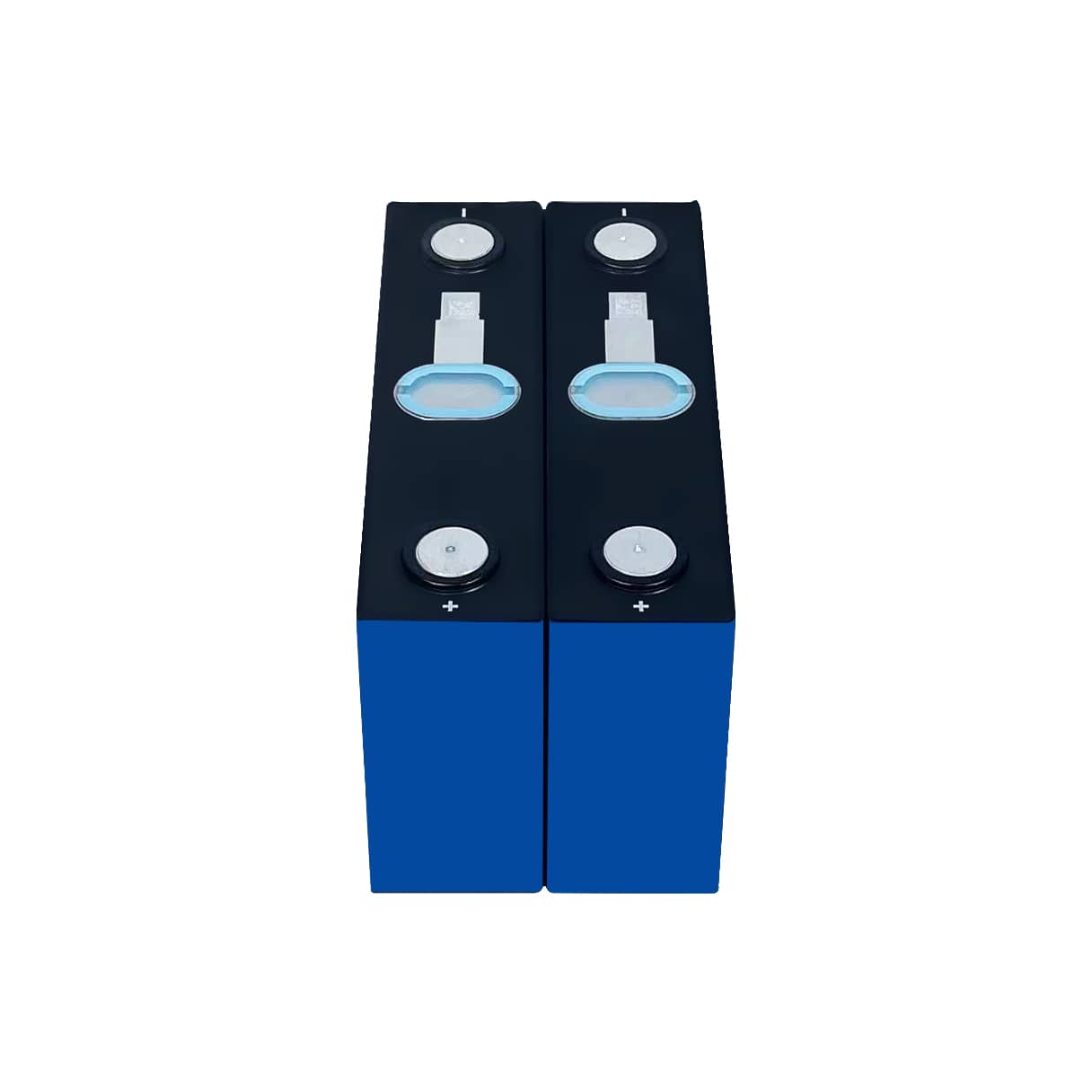

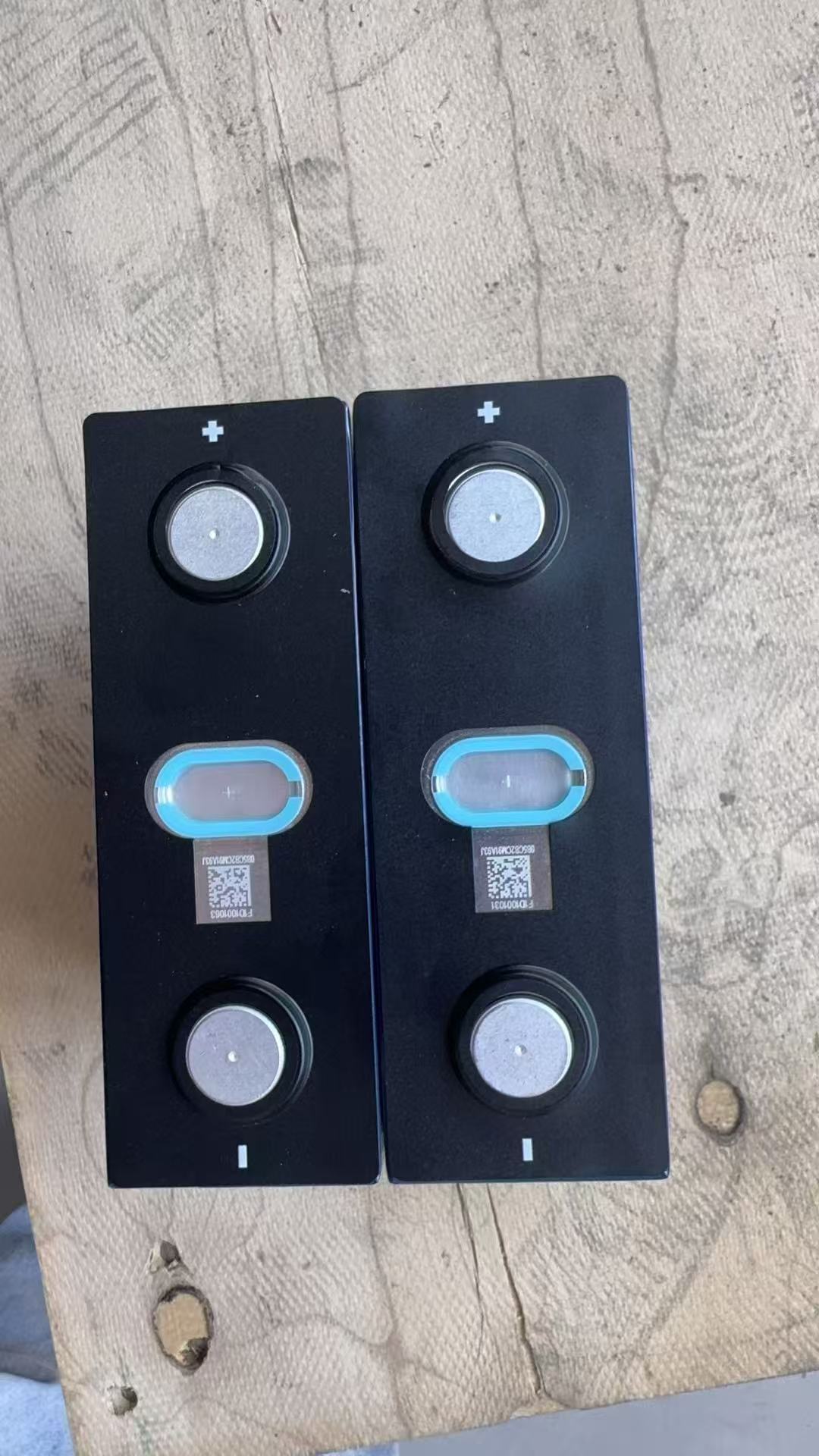

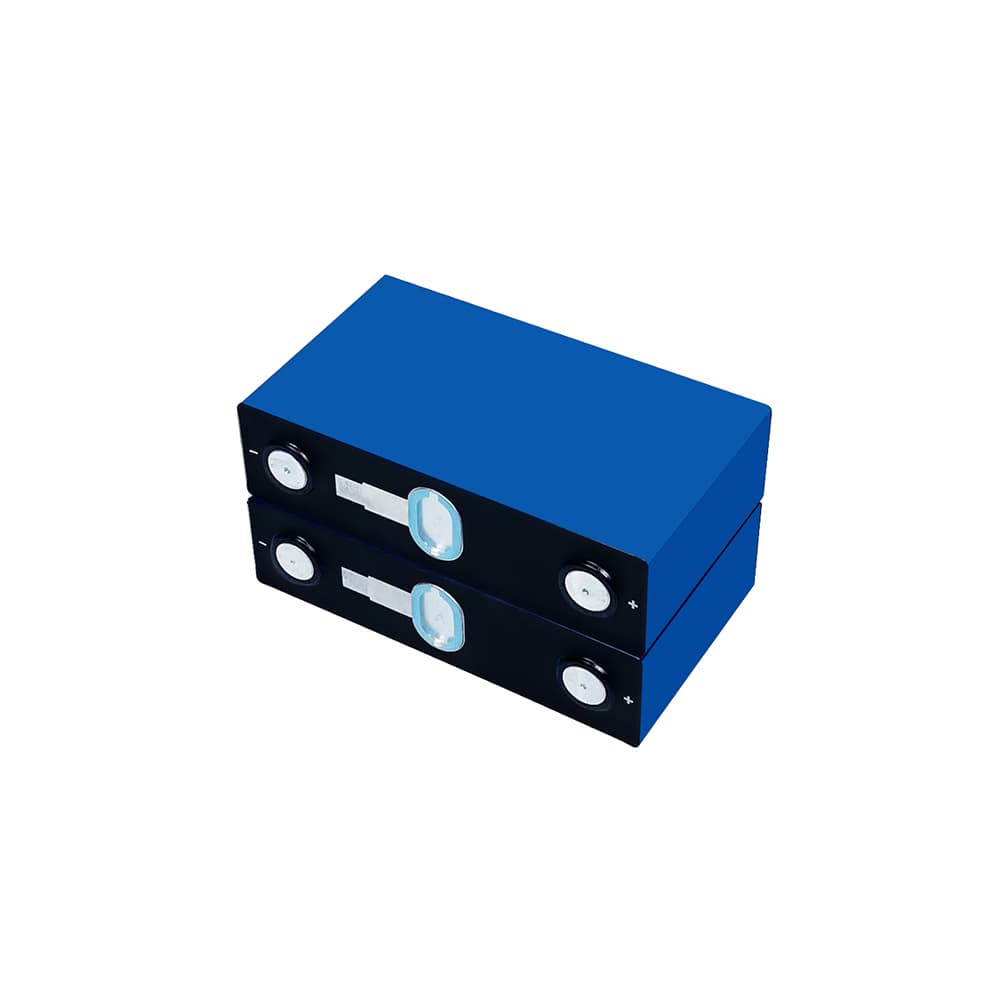

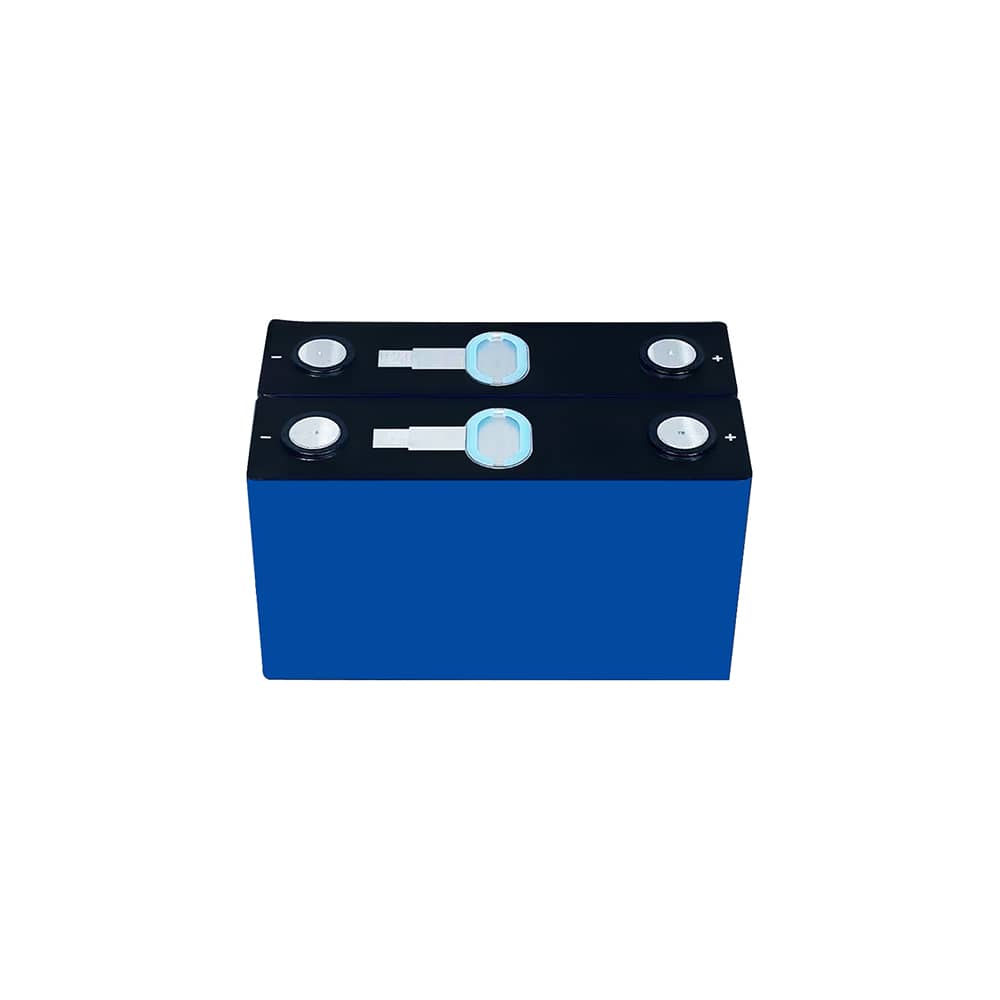

CALB L194F130B LiFePO4 130Ah 3.2V Battery Cell
Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE
Model Number: L194F130B
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 130Ah Nominal Voltage: 3.20 V
- Internal Impedence: ＜0.3mΩ Operating Voltage: 2.5~3.65 V
- Dimension: 194.3*50.7*112.9mm Battery Weight: 2.34±0.025 kg
Product Description
100% brand new, grade-A CALB L194F130B LiFePO4 130Ah 3.2V Battery Cell with a complete QR code, offers a long cycle life, high energy density, and a wide operating temperature range, for E-bike, Golf cart, Solar street light, Forklift, UPS, yacht, AGV (Automated Guided Vehicle), RV( Recreational Vehicle), Electric vehicle, Energy storage system(ESS) for wind and solar power, Household storage system and etc.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- · Qualified for RoHS & CCC winth high safely
- · More than 9000 cycles under the designed working condition
- · Anti-explosion safely valve applied
- · Ceramic membrane technology applied to enhance safety
- · Widely applications
Specification
| Items | Parameters | Remarks |
|---|---|---|
| Rated capacity | 130Ah | 1C Discharge |
| 133.2 Ah | Standard Discharge | |
| Rated Voltage | 3.20 V | 1C Discharge |
| 3.22 V | Standard Discharge | |
| Rated Energy | 416Wh | 1C Discharge |
| 428.9Wh | Standard Discharge | |
| Cell Weight | 2.34±0.025 kg | |
| Mass Energy Density | 185Wh/kg | |
| Volume Energy Density | 395Wh/L | |
| Alternating Current Resistance | ＜0.3mΩ | 20%SOC,Room Temperature, AC Impedance, 1000 Hz |
| Temperature Range | Charging Temperature: -20~55°C | |
| Discharging Temperature: -30~55°C | ||
| Storage Temperature: -40~60°C | ||
| Fast Charging Time | ≤20 min | |
| Voltage Range | 2.5~3.65 V, 0℃≤T≤55℃ 2.0~3.65 V, -30℃≤T＜0℃ |
|
| Dimension W*T*H | 194.3±0.3*50.7±0.3*112.9±0.4mm |

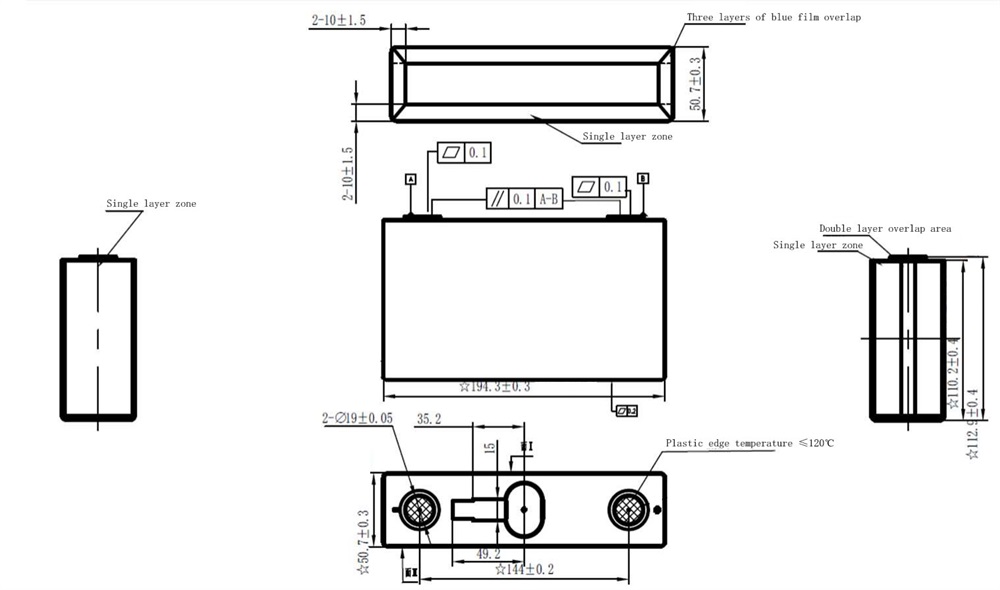

Dimension and Details
A Large Number of Spot, Offered at Highly Competitive Prices
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
