CALB L135F80B 3.2V 80Ah LiFePO4 Battery Cell
Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE
Model Number: L135F80B
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 80Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.1~0.5mΩ Operating Voltage: 2.5V~3.65V
- Dimension: 135.2x29.5x220.5mm Battery Weight: 1.87±0.1kg
Product Description

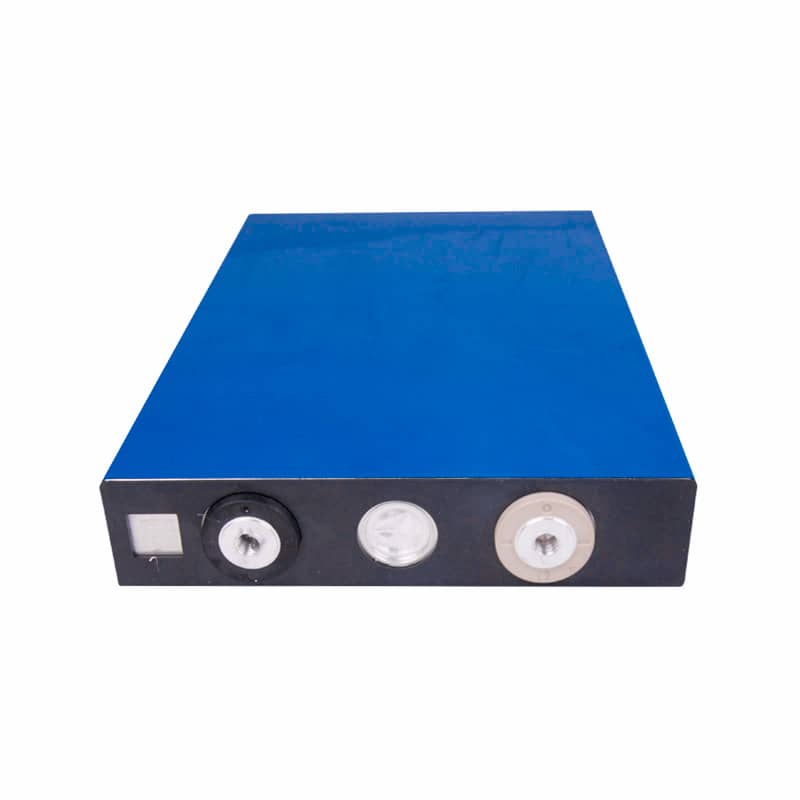

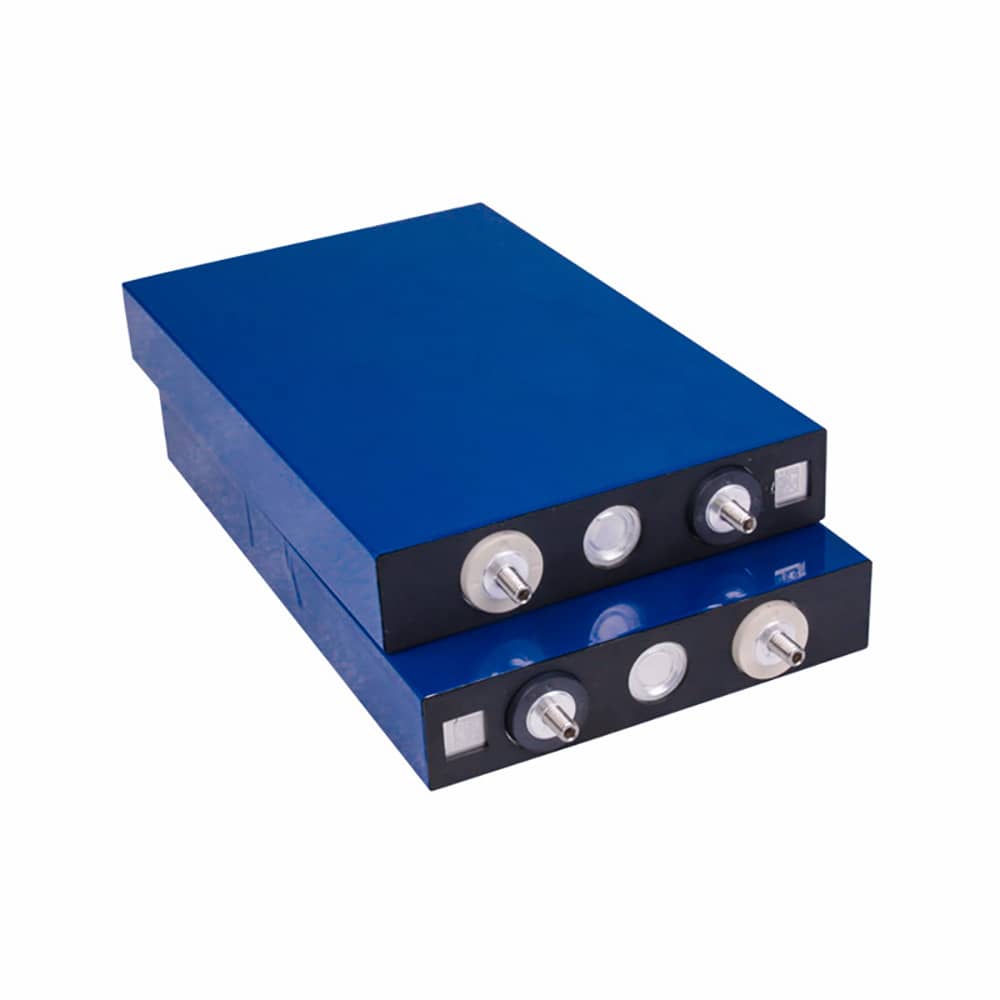

100% brand new, grade-A CALB L135F80B 3.2V 80Ah LiFePO4 Battery Cell with a complete QR code, offers a long cycle life, high energy density, and a wide operating temperature range, for E-bike, Golf cart, Solar street light, Forklift, UPS, yacht, AGV (Automated Guided Vehicle), RV( Recreational Vehicle), Electric vehicle, Energy storage system(ESS) for wind and solar power, Household storage system and etc.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- · Qualified for RoHS & CCC winth high safely
- · More than 2000 cycles under the designed working condition
- · Anti-explosion safely valve applied
- · Ceramic membrane technology applied to enhance safety
- · High energy density:137wh/kg
- · High charge/discharge rates
Specification
| Item | Parameter | |
|---|---|---|
| Battery Module | L135F80B | |
| Nominal Capacity | 80Ah | |
| Minimum Capacity | 80Ah | |
| Nominal Voltage | 3.2 V | |
| Internal Resistance | 0.1~0.5mΩ | |
| Charging(CC-CV) | Maximum Charging Current | 80A |
| Charging Upper Limit Voltage | 3.65V | |
| Discharging | Maximum Discharging Current | 160A |
| Discharging Cut-off Voltage | 2.5V | |
| Charging Time | Standard Charging | 4h |
| Quick-acting Charging | 1h | |
| Recommended SOC Usage Window | SOC: 10%~90% | |
| Operation Thermal Ambient | Charging | -5°C ~ 55°C |
| Discharging | -30°C ~ 60°C | |
| Storage Thermal Ambient | Short-term (within 1 month) | -20°C ~ 45°C |
| Long term (within 1 year) | -20°C ~ 25°C | |
| Storage Humidity | < 70% | |
| Battery Weight | 1.87±0.1kg | |
| Battery Dimension | 135.2x29.5x220.5mm | |
| Shell Material | Aluminium | |
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
