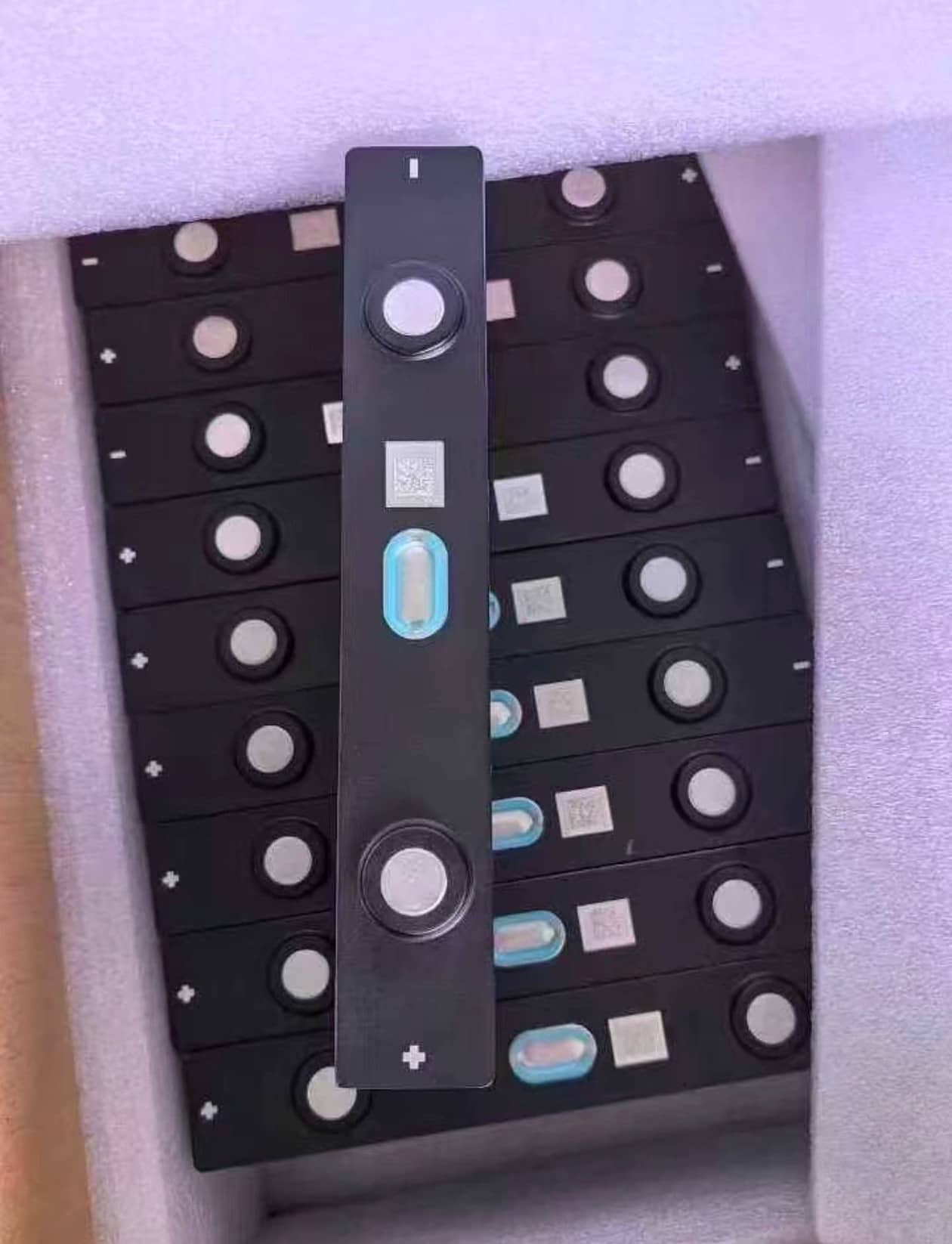

CALB Battery L194F54 3.2V 54Ah LiFePO4 Battery Cell
Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE
Model Number: L194F54
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 54.0 Ah Nominal Voltage: 3.20V
- Internal Impedence: ≤0.45 mΩ Operating Voltage: 2.5V~3.65V
- Dimension: 87.0* 194.3* 30.3mm Battery Weight: 1.08±0.02 kg
Product Description
100% brand new, grade-A CALB Battery L194F54 3.2V 54Ah LiFePO4 Battery Cell with a complete QR code, offers a long cycle life, high energy density, and a wide operating temperature range, for E-bike, Golf cart, Solar street light, Forklift, UPS, yacht, AGV (Automated Guided Vehicle), RV( Recreational Vehicle), Electric vehicle, Energy storage system(ESS) for wind and solar power, Household storage system and etc.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- ✅ High safety: Excellent thermal stability, minimizing the risk of fire or explosion.
- ✅ Long cycle life: Typically exceeds 3,500 cycles.
- ✅ Environmentally friendly: Made from eco-friendly raw materials, with reduced environmental impact during both production and recycling.
- ✅ Stable at high temperatures: Minimal capacity degradation, maintaining high efficiency and safety under elevated temperatures.
- ✅ Lower cost: Low material costs and mature manufacturing processes make it highly cost-effective for large-scale applications.
- ✅ Good rate performance: Capable of handling high charge and discharge currents.
- ✅ Good consistency: Ensures reliable performance uniformity in mass production.
- ✅ Supports fast charging: Select models enable fast charging, significantly reducing charging time.
Specification
| Items | Parameter | Remarks |
|---|---|---|
| Material System | LFP / Gr | LFP / Gr |
| Rated Capacity | 54.0 Ah | 1C Discharge |
| 55.4 Ah | Standard Discharge | |
| Rated Voltage | 3.20V | 1C Discharge |
| 3.22 V | Standard Discharge | |
| Rated Energy | 172.8Wh | 1C Discharge |
| 178.39Wh | Standard Discharge | |
| Cell Weight | 1.08±0.02 kg | / |
| Mass Energy Density | 160 Wh/kg | Standard Discharge |
| Cell Volume | 0.497L, without terminal | / |
| Volume Energy Density | 358.7 Wh/L | Standard Discharge |
| ACR (AC Impedance) | ≤0.45 mΩ | Room Temperature, AC Impedance, 1000 Hz |
| DCR (DC Impedance) | ≤1.3 mΩ | 25℃, 50% SOC, 4C 10s discharge |
| Charging Temperature | -30~55°C | / |
| Discharging Temperature | -35~55°C | / |
| Storage Temperature | -40~60°C | / |

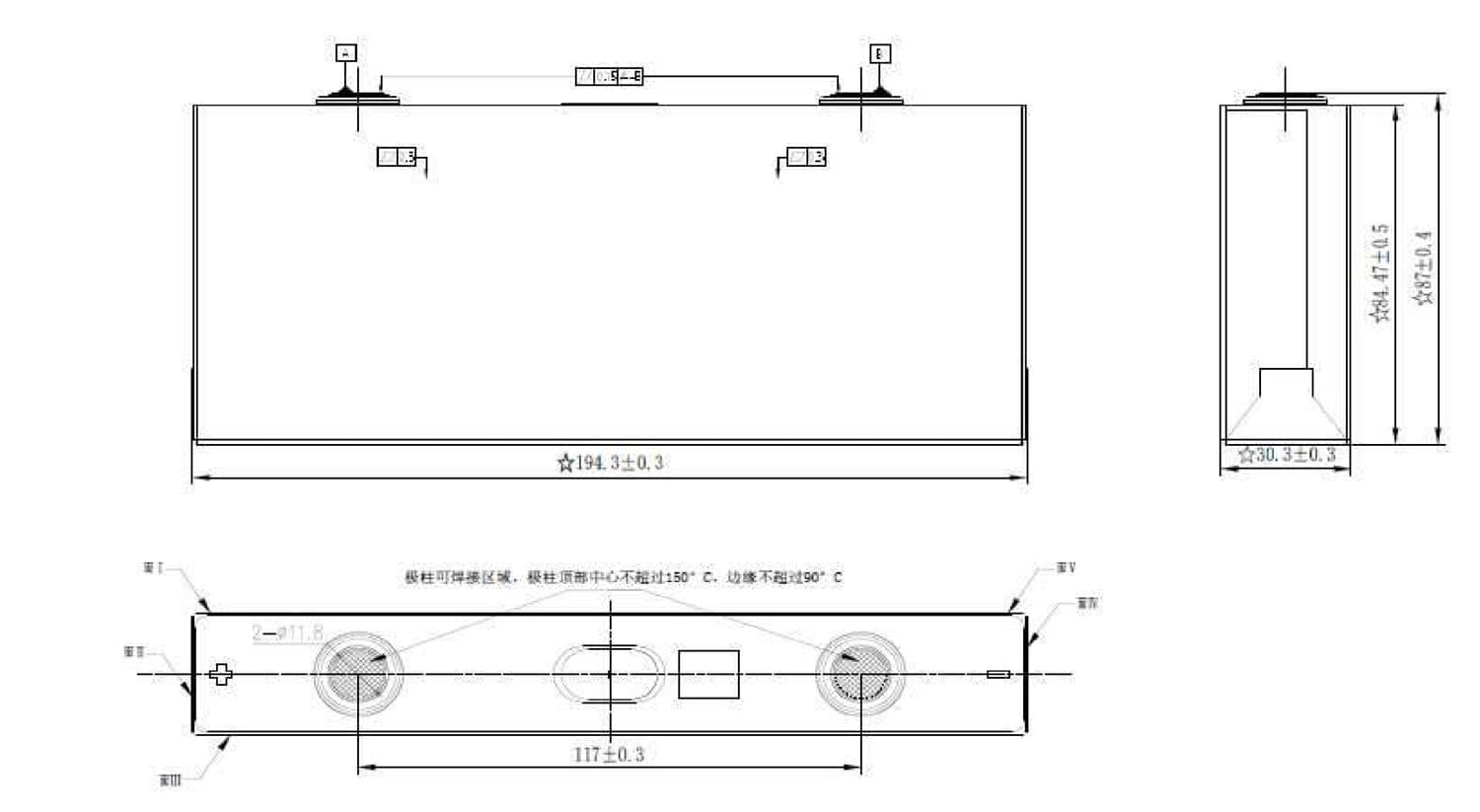

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
