CALB LiFePO4 88Ah 3.2V Battery Cell L148F88A
Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE
Model Number: L148F88A
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 88 Ah Nominal Voltage: 3.2 V
- Internal Impedence: 0.3±0.05 mΩ Operating Voltage: 2.5~3.65 V
- Dimension: 148.0*52.0*104.5mm Battery Weight: 1.62±0.03 kg
Product Description

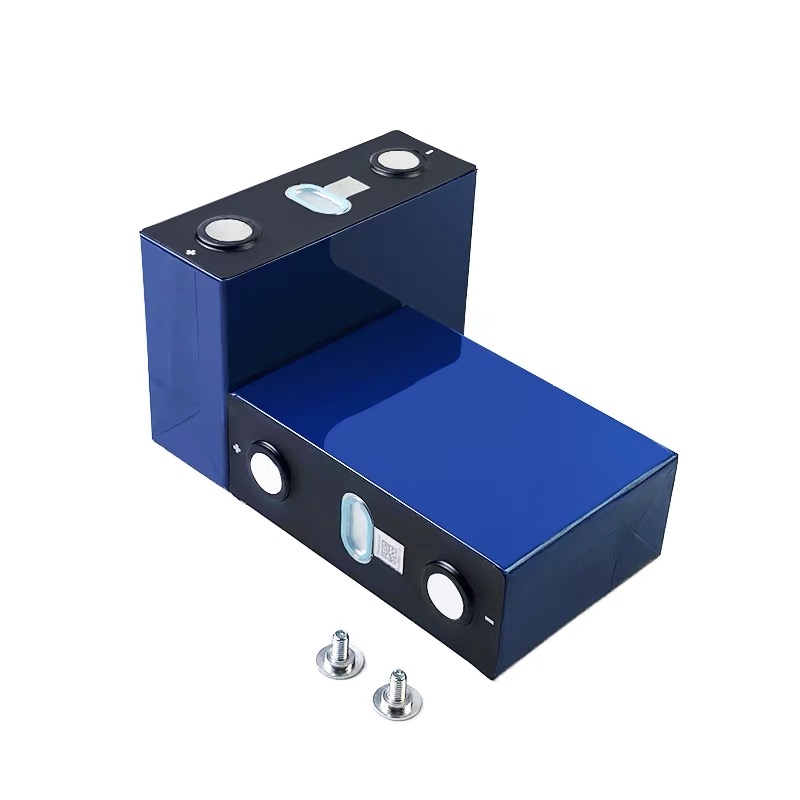

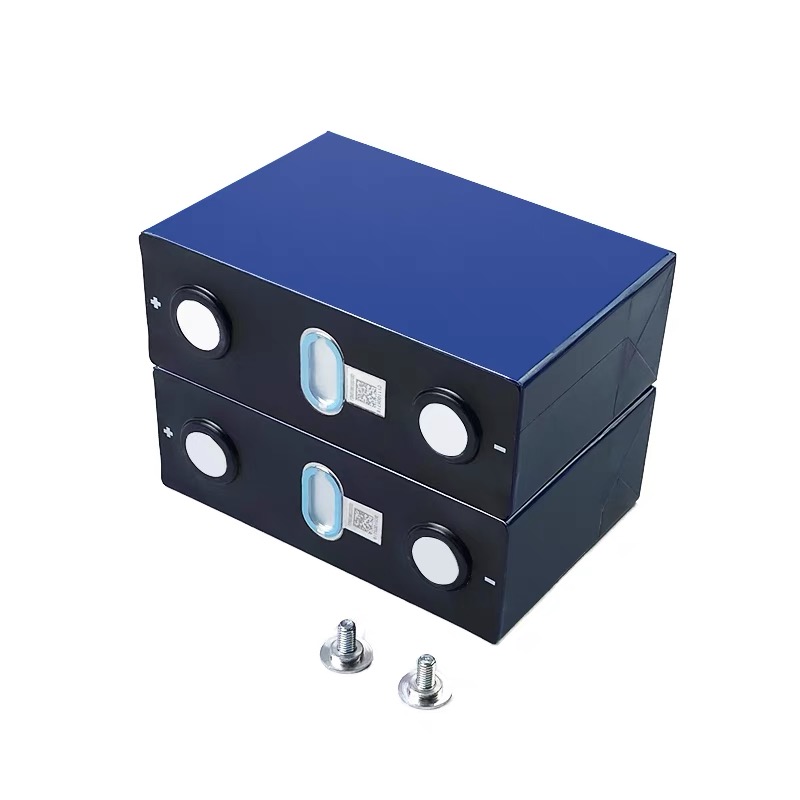

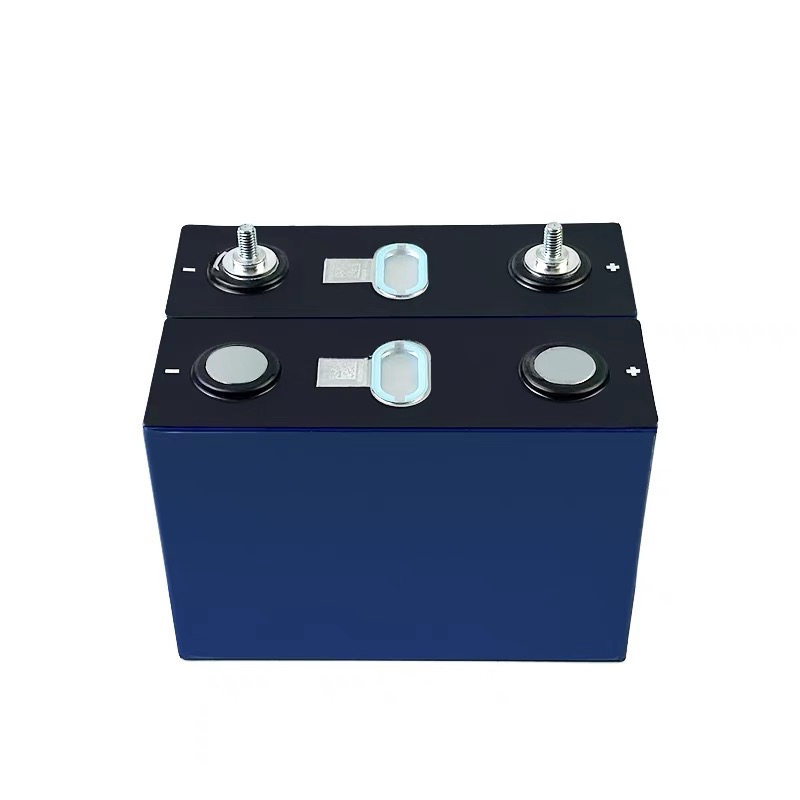

CALB LiFePO4 88Ah 3.2V Battery Cell L148F88A. Brand new, grade A. Small size & High energy density. Low internal resistance & High discharge rate. M6 studs can be welded. Suitable for golf carts, tricycles, boats, small energy storage and so on.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Items | Specifications | Remark | |
|---|---|---|---|
| Material system | LFP / Gr | LFP / Gr | |
| Rated Capacity | 88 Ah | 1C Discharge | |
| 88.8 Ah | Standard Discharge | ||
| Rated Voltage | 3.2 V | 1C Discharge | |
| 3.22 V | Standard Discharge | ||
| Rated Energy | 281.6Wh | 1C Discharge | |
| 285.9Wh | Standard Discharge | ||
| Cell Weight | 1.62±0.03 kg | / | |
| Mass Energy Density | 176.5 Wh/kg | Standard Discharge | |
| Cell Volume | 0.785L without terminal | / | |
| Volume Energy Density | 364 Wh/L | Standard Discharge | |
| ACR | 0.3±0.05 mΩ | Room Temperature, AC Impedance,1000 Hz | |
| DCR | ≤0.85mΩ | 25℃, 50% SOC ，6C 10s discharge | |
| Temperature Range |
Charging Temperature | -20~55℃ | / |
| Discharging Temperature | -30~55℃ | / | |
| Storage Temperature | -40~60℃ | / | |
| Fast Charging Time | ≤30 min | 30-80% SOC | |
| Voltage Range | 2.5~3.65 V | 0℃＜T≤55℃ | |
| 2.0~3.65 V | -30℃≤T≤0℃ | ||

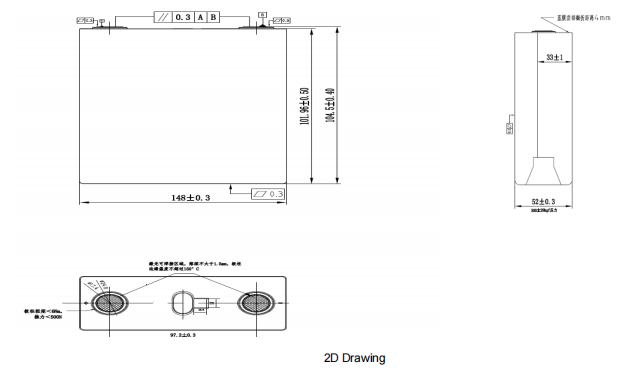

Dimension and Details
Note

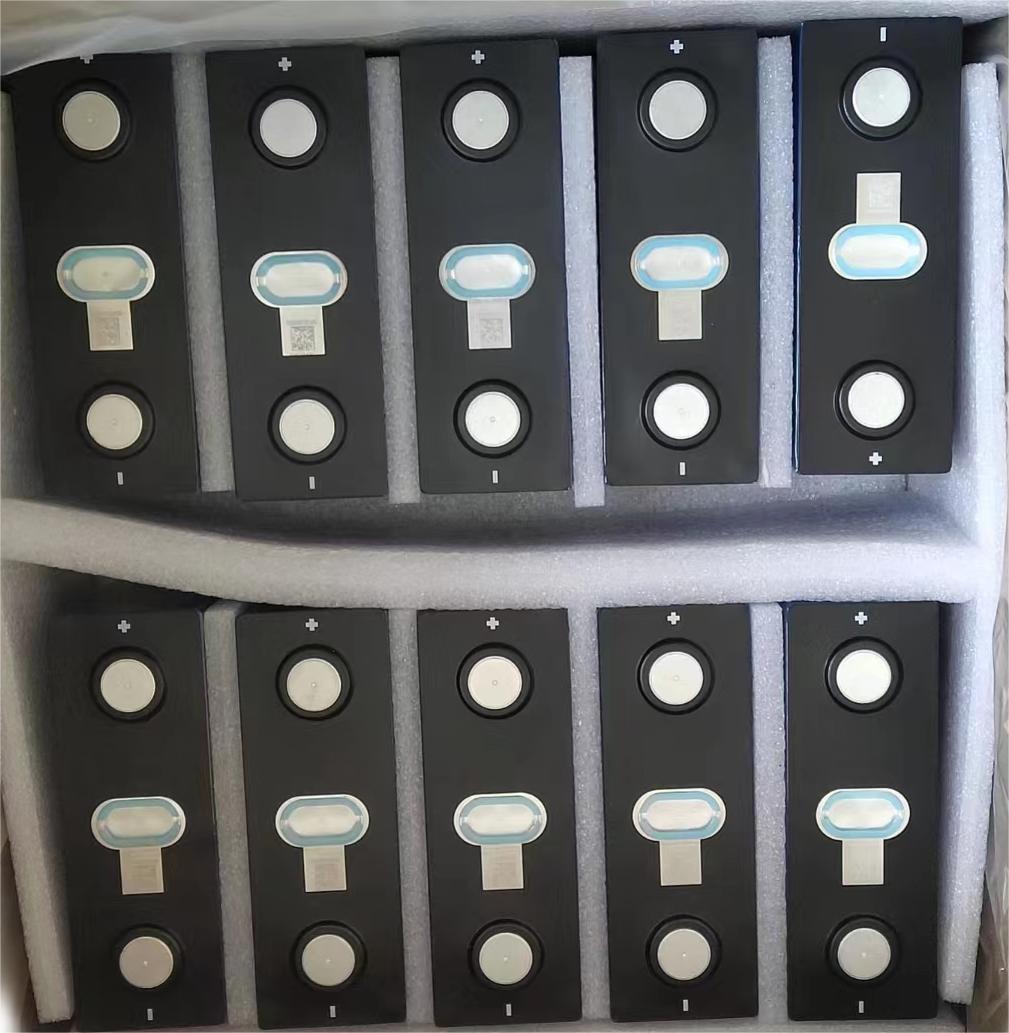

1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
