CALB L221N169A 3.7V 169ah nmc lithium ion battery
Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE
Model Number: L221N169A
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 169Ah Nominal Voltage: 3.7V
- Internal Impedence: 0.25~0.55mΩ Operating Voltage: 2.8V~4.35V
- Dimension: 220.8*44.5*112mm Battery Weight: 2.515±0.10kg
Product Description
The CALB L221N169A is a 3.7V 169Ah rechargeable lithium battery utilizing the NMC 811 chemistry. Engineered for high safety, high energy density, and a long cycle life of over 3,500 cycles, this cell has passed a comprehensive set of safety tests—including overcharge, short circuit, crush, and temperature cycling—while also being certified to RoHS and UN38.3 standards. It is now widely employed in various electric vehicle applications.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Specification
| Items | Parameters |
|---|---|
| Product Name | CALB L221N169A 169AH NMC Battery |
| Shell Material | Aluminium alloy |
| Rated capacity | 169Ah |
| Internal impedance | 0.25~0.55mΩ |
| Nominal voltage | 3.7V |
| Dimensions(L*W*H) | 220.8*44.5*112mm |
| Weight | 2.515±0.10kg |
| Screw size | M6/Weld |
| Recommend Constant Current | 169A(1C) |
| End-of-Discharge Voltage | 2.75V |
| Work voltage | 2.8V-4.35V (T>0℃) |
| Internal resistance | 0.25~0.55mΩ |
| Recommended SOC Window | SOC: 3%~97% |
| Max Continuous Discharge Current | 169A(1C) |
| Cycle life (80%DOD) | ＞3500 cycles |
| Charging Temperature | -20~55°C |
| Discharging Temperature | -30~55°C |

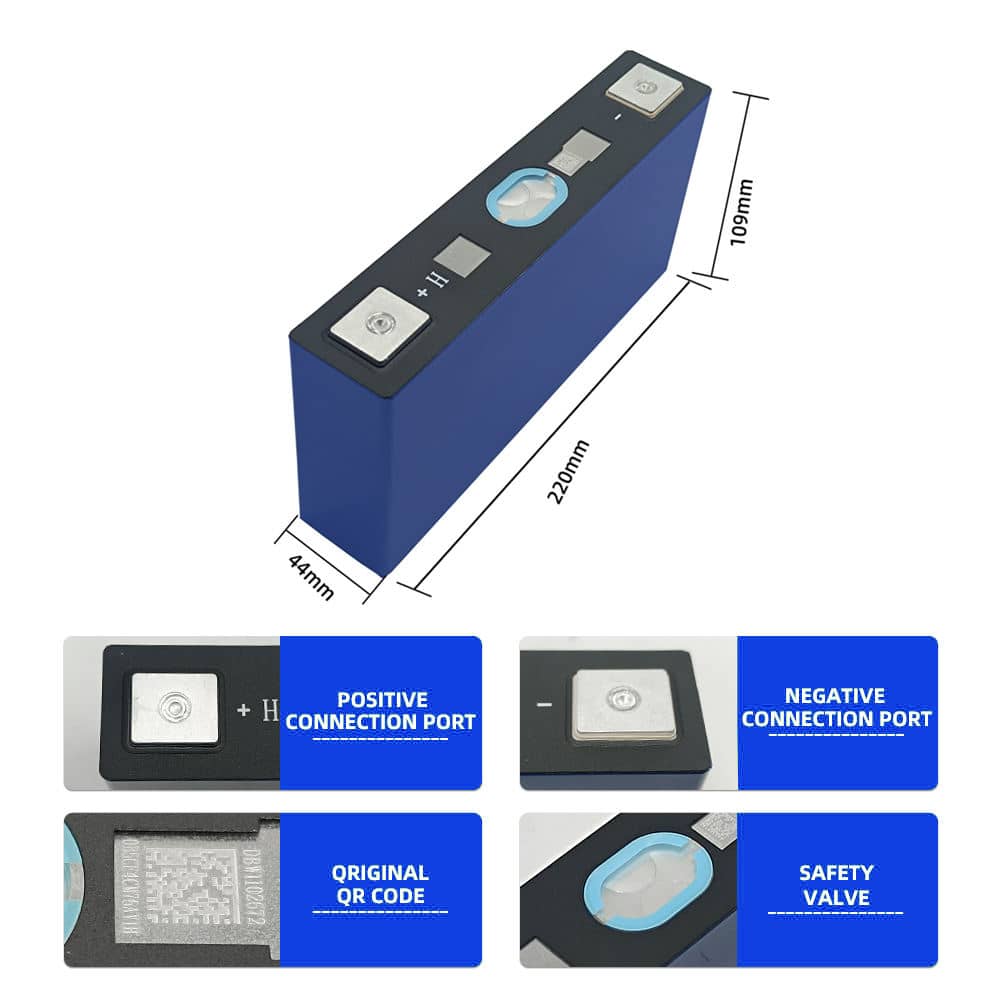

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
