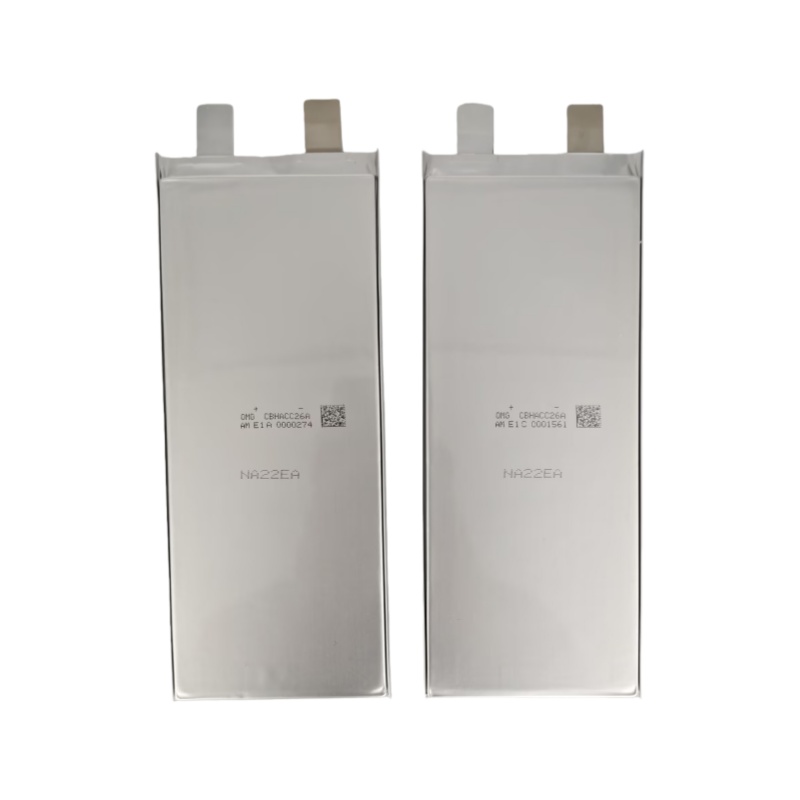

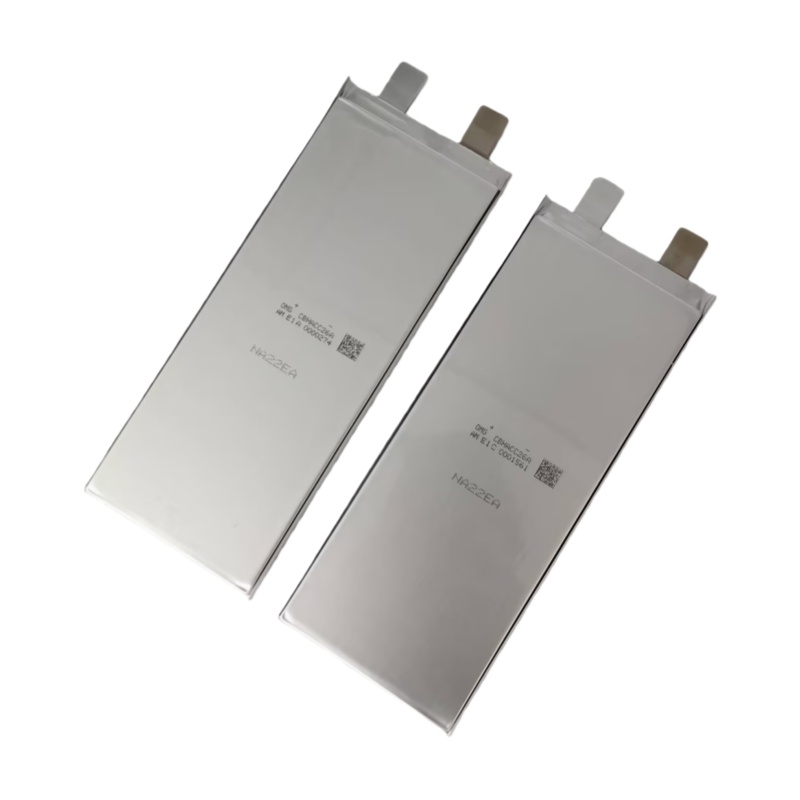

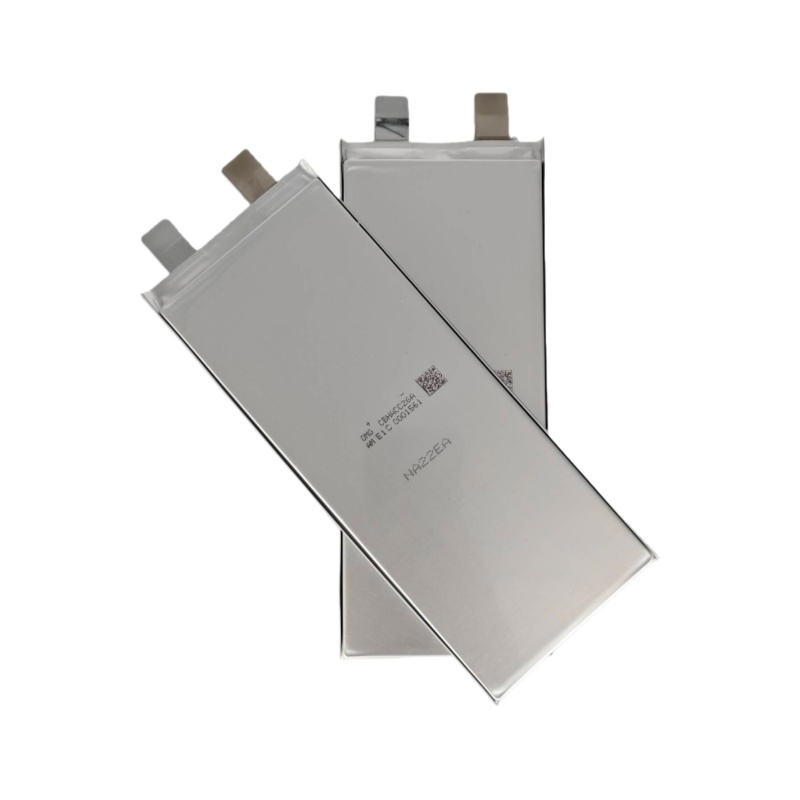

byd lifepo4 battery SF9890M3B 3.2v 21.7ah pouch battery cell
Product Details:
Place of Origin: China
Brand Name: BYD
Certification: CE
Model Number: SF9890M3B
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: ≥21.7Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤1.8mΩ Operating Voltage: 2.5~3.65V
- Dimension: 224*9.8*90.25mm Battery Weight: 0.39kg
Product Description
100% brand new, grade-A byd SF9890M3B 3.2v 21.7ah pouch cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- · LiFePO4 as cathode material
- · Excellent safety, long life cycle
- · Good temperature performance and
- · large operating temperature range
- · High energy density
- · Environment friendly
Specification
| Item | Specifications | Remark |
|---|---|---|
| Chemical | LiFePO4 | |
| Dimension | 224(mm)*9.8(mm)*90.25(mm) | 25%SOC |
| Tab width | 15±0.1mm | |
| Tab distance | 30±1mm | |
| Positive tab(aluminum) thickness | 0.2±0.01mm | |
| Negative tab (nickel plated copper) thickness | 0.15±0.01mm | |
| Weight | 0.39kg | |
| Capacity | ≥21.7Ah | 2.7~3.65V,0.5C/0.2C, @RT |
| Nominal voltage | 3.2V | At 25℃ |
| Operating voltage range | 2.5-3.65V | At 25℃ |
| Outgoing voltage | 3.275~3.3V | At 25℃ |
| Outgoing SOC | 25% | |
| ACIR | ≤1.8mΩ | 25±3℃,1kHz |
| Standard charging current | 0.2C | At 25℃ |
| Max. continuous charging current | 1C | At 25℃, ≤60%SOC |
| Standard discharging current | 0.2C | At 25℃ |
| Max. continuous discharging current | 1C | At 25℃ |
| Operating temperature range(charge) | -20~60℃ | Ambient Temperature |
| Operating temperature range(discharge) | -20~60℃ | Ambient Temperature |
| Cycle life | ≥2500cls@80%SOH | 0.5C/1.0C @25℃ |
| ≥1200cls@80%SOH | 0.5C/1.0C @45℃ |

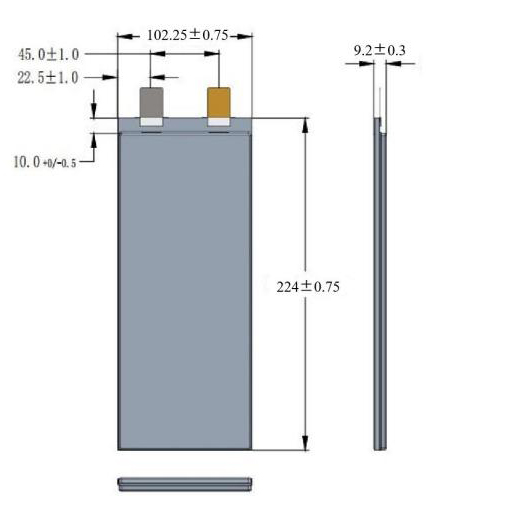

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
