Svolt Battery CL33 3.2V 135.5Ah LFP Blade Battery
Product Details:
Place of Origin: China
Brand Name: Svolt Battery
Certification: CE
Model Number: CL33
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 135.5 Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.65mΩ Operating Voltage: 2.0 ~ 3.65 V
- Dimension: 580.0×120.0×15.5mm Battery Weight: 2350±35 g
Product Description
What makes the Svolt Blade Battery unique is its unique blade-like structure that enhances thermal management and safety. The innovative design maximizes the battery's cooling efficiency, minimizing the risk of overheating and improving overall safety. In addition to their safety features, blade batteries are known for their excellent energy density and long cycle life.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- High energy density: Blade battery design, higher energy density, longer driving range
- Long cycle life: withstand more charge and discharge cycles, life can reach thousands of times
- High safety: Good thermal and chemical stability, even in extreme cases, there is less risk of combustion and explosion.
- Good temperature adaptability: It can adapt to a wide range of temperatures and can provide stable power output under a wide range of environmental conditions.
- Fast charging capability: The CL33 battery has a fast charging speed and can be charged in a short time to improve the charging efficiency of electric vehicles.
- Environmental protection: lithium iron phosphate battery does not contain harmful heavy metal materials, in line with environmental requirements
Specification
| Parameter | Specification |
|---|---|
| Nominal Capacity | ≥134.5 Ah 25℃, 135.5 A(1C) DC to 2.0V ≥135.5 Ah 25℃, 45.17 A(1/3C) DC to 2.0V |
| Energy | ≥420.99 Wh 25℃, 135.5 A(1C) DC to 2.0V ≥434.96 Wh 25℃, 45.17 A(1/3C) DC to 2.0V |
| Specific Energy | ≥179.14 Wh/Kg 25℃, 135.5 A(1C) DC to 2.0V ≥185.08 Wh/Kg 25℃, 45.17 A(1/3C) DC to 2.0V |
| Operating Voltage | 2.0 ~ 3.65 V (-30℃<T≤55℃) |
| ACR(1KHz) | ≤0.65mΩ (25℃, BOL, 21%SOC) |
| Outgoing Voltage | 3.265-3.270V (25℃, BOL, 21%SOC ) |
| Outgoing Capacity | ≥135.5 Ah (25℃, 43.67 A(1/3C) DC to 2.0V) |
| Operating Temperature (Charge) | -20℃ ~ 55℃ |
| Operating Temperature (Discharge) | -30℃ ~ 55℃ |
| Cycle Life | ≥2500 (25℃, Step charge/1C, 3-100%SOC，80%SOH) |
| Discharge Power @ 25℃ | ≥2547W (25± 3℃, 50%SOC, 10 s) |
| Discharge Power Density @25℃ | ≥1000W/Kg (25± 3℃, 50%SOC, 10 s) |
| Recommended SOC Range | 3% - 100% |
| Cell Weight | 2350±35 g |
| Cell Dimension | L(580.0±0.65)×W(120.0±0.35)×W(15.5±0.4)mm |

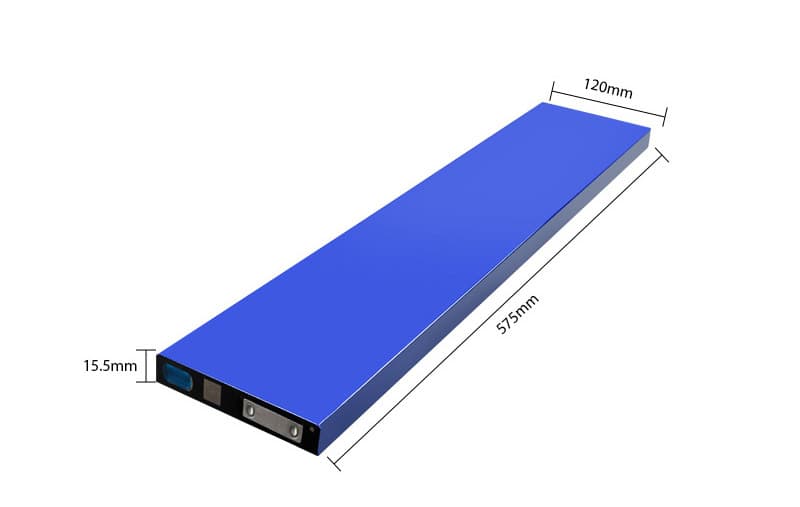

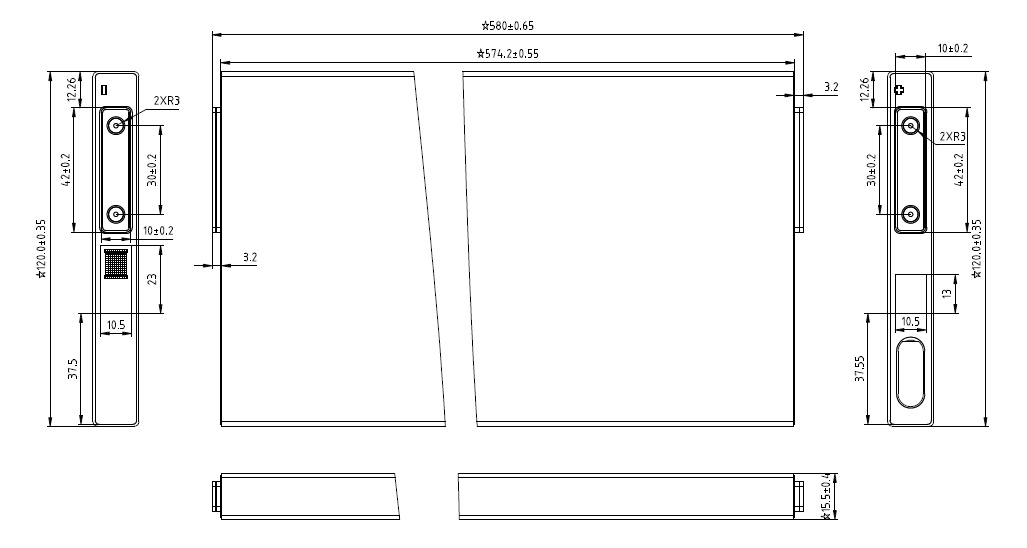

Dimension and Details
We have our own welding machines to help customers weld poles.

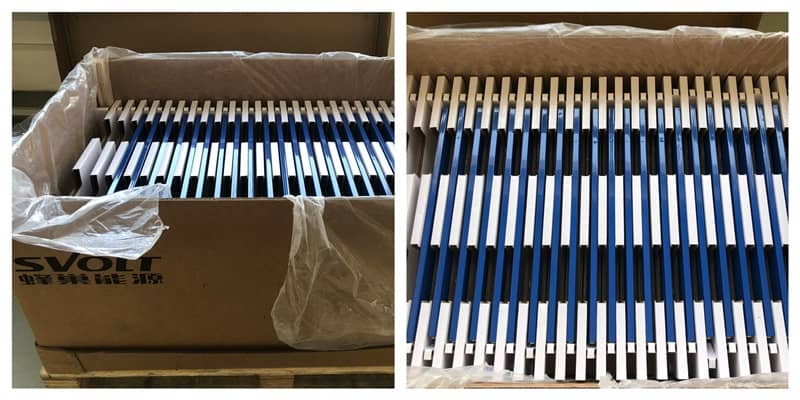

Before shipment, we conducted quality inspections on the Svolt Battery CL34 3.2V 162.5Ah LFP Blade Battery purchased by the customer.
Applications
- Passenger cars: mainly pure electric vehicles and plug-in hybrid electric vehicles (PHEV), to provide power for the vehicle, high energy density makes the vehicle mileage to improve, long cycle life to reduce battery costs, improve the overall economy.
- Commercial vehicles, such as commercial light trucks, their high energy density can meet the cargo needs of commercial vehicles, long cycle life can reduce operating costs and improve economic efficiency.
- Autonomous vehicles: Provide a stable and reliable energy supply for autonomous vehicles, and its high safety performance ensures the safety of the autonomous driving process.
- In addition, the CL33-135.5Ah Lifepo4 Blade Battery is also widely used in energy storage systems, offshore wind energy storage, smart grid, off-grid power systems, portable energy storage devices or backup power supplies (UPS).
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
