JK BMS 8S-32S 100A Continuous Discharge LiFePO4/Li-ion/LTO Smart BMS BD6A32S10P

The JK-BD6A32S10P is a versatile Smart BMS engineered for 8S to 32S battery strings. It delivers a stable 100A continuous charge and discharge capability, making it perfect for high-voltage energy storage and mid-to-high power electric mobility. Featuring an integrated 0.6A active balancer, it ensures cell consistency across long series strings to maximize capacity and pack life. Compatible with Li-ion, LiFePO4, and LTO, it offers comprehensive smart control via integrated Bluetooth.

Extended Series Management with the BD6A32S10P The JK-BD6A32S10P is designed for users who need to push beyond the common 16S or 24S limits. By supporting up to 32 cells in series, this BMS allows for the creation of high-voltage packs (up to 96V nominal for LiFePO4 or 118V for Li-ion). Because it features a 0.6A active balancer, it handles the increased risk of cell drift in long strings far more effectively than passive systems. It proactively transfers energy from the strongest cells to the weakest, ensuring that a single cell never limits the performance of your entire high-voltage array.

Why Choose the BD6A32S10P?

• ● Massive 32S Capability: This unit is purpose-built for high-voltage builds. Specifically, it allows for more efficient power delivery by increasing voltage rather than current, reducing heat and cable size requirements.
• ● Proactive 0.6A Active Balancing: In a 32S string, cell matching is critical. The active balancing system works constantly to keep all 32 cells at the same voltage level. Consequently, you get more usable energy and a safer battery pack.
• ● Universal Chemistry Support: Whether you are using Li-ion for power, LiFePO4 for stability, or LTO for extreme cycles, the JK-BD6A32S10P handles them all. Every protection threshold is fully adjustable via the smartphone app.
• ● Smart Bluetooth Integration: The built-in Bluetooth chip allows you to monitor all 32 cells simultaneously on your phone. You can view real-time statistics, adjust parameters, and diagnose issues without ever needing to open the battery enclosure.

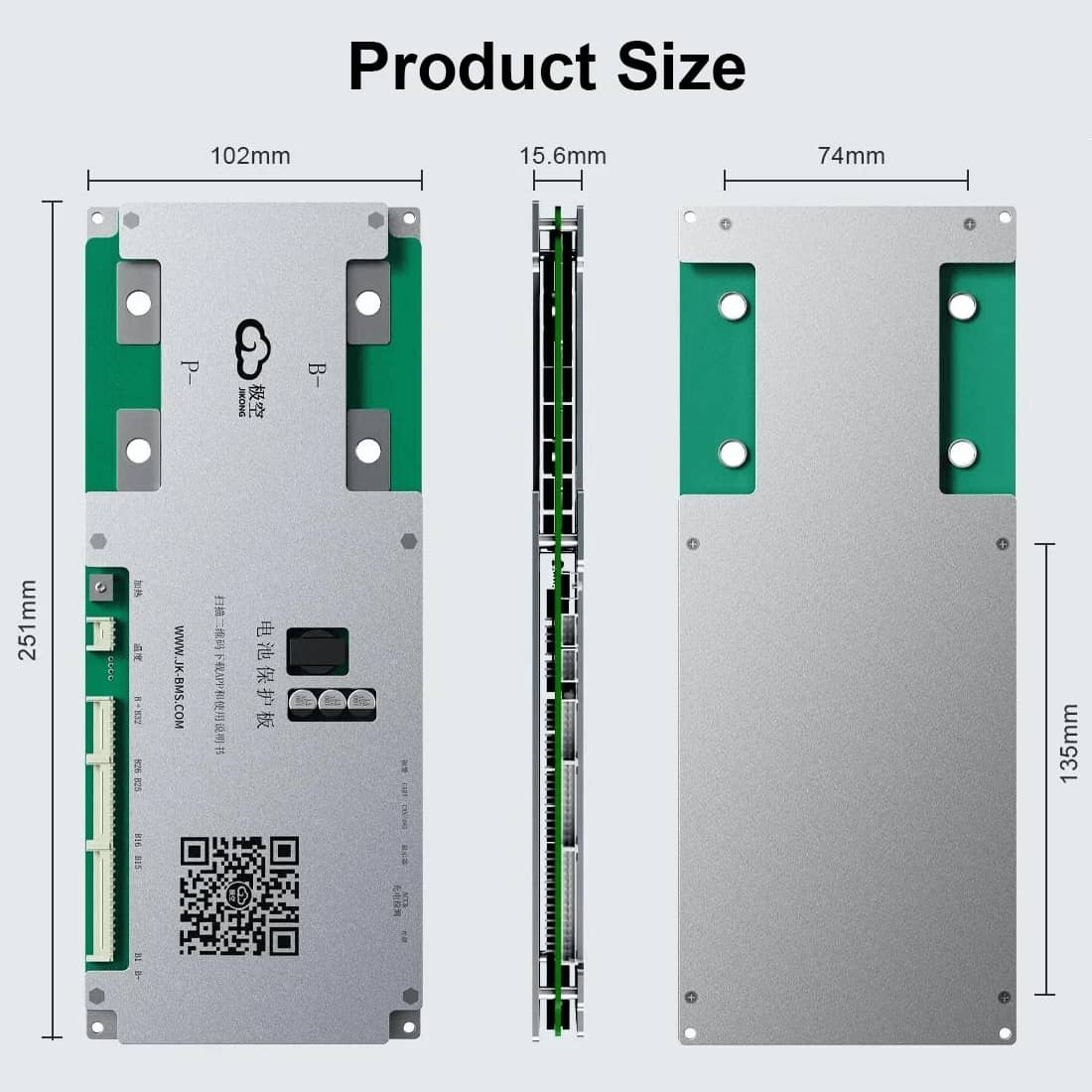

Product Size

application
