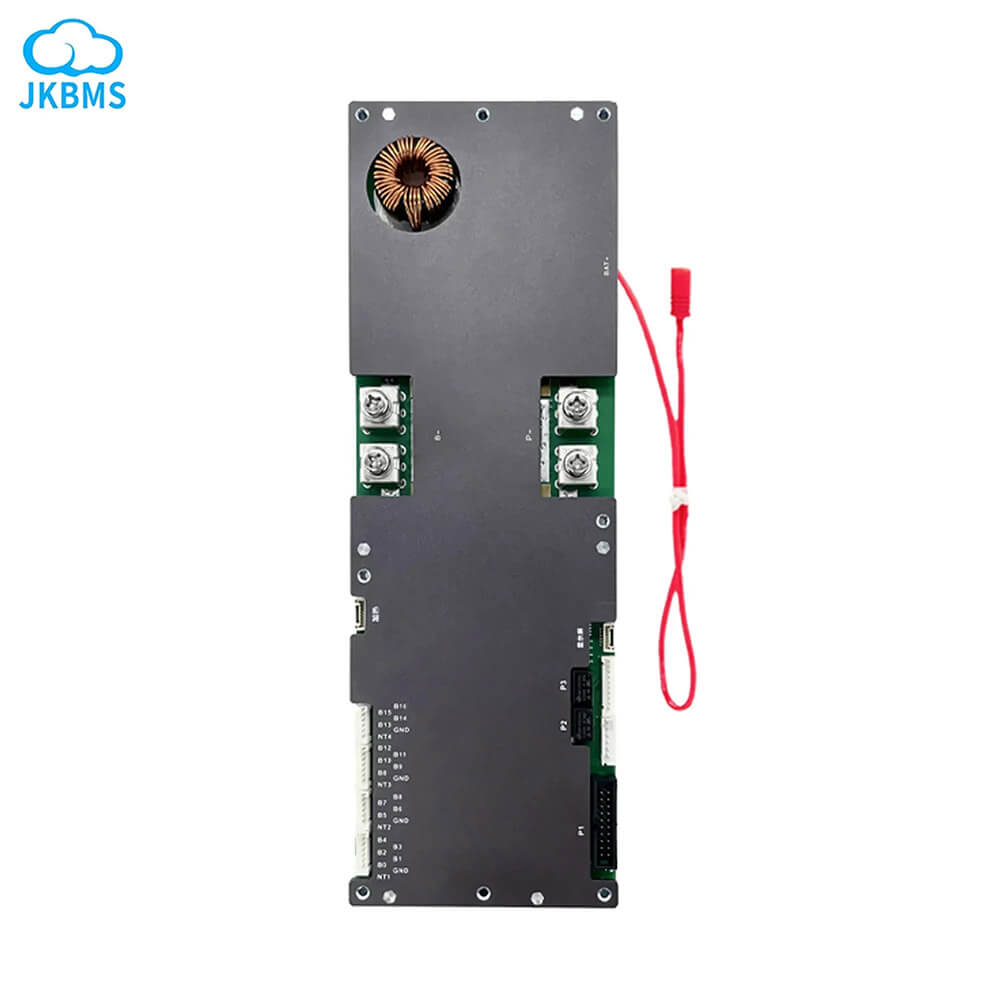

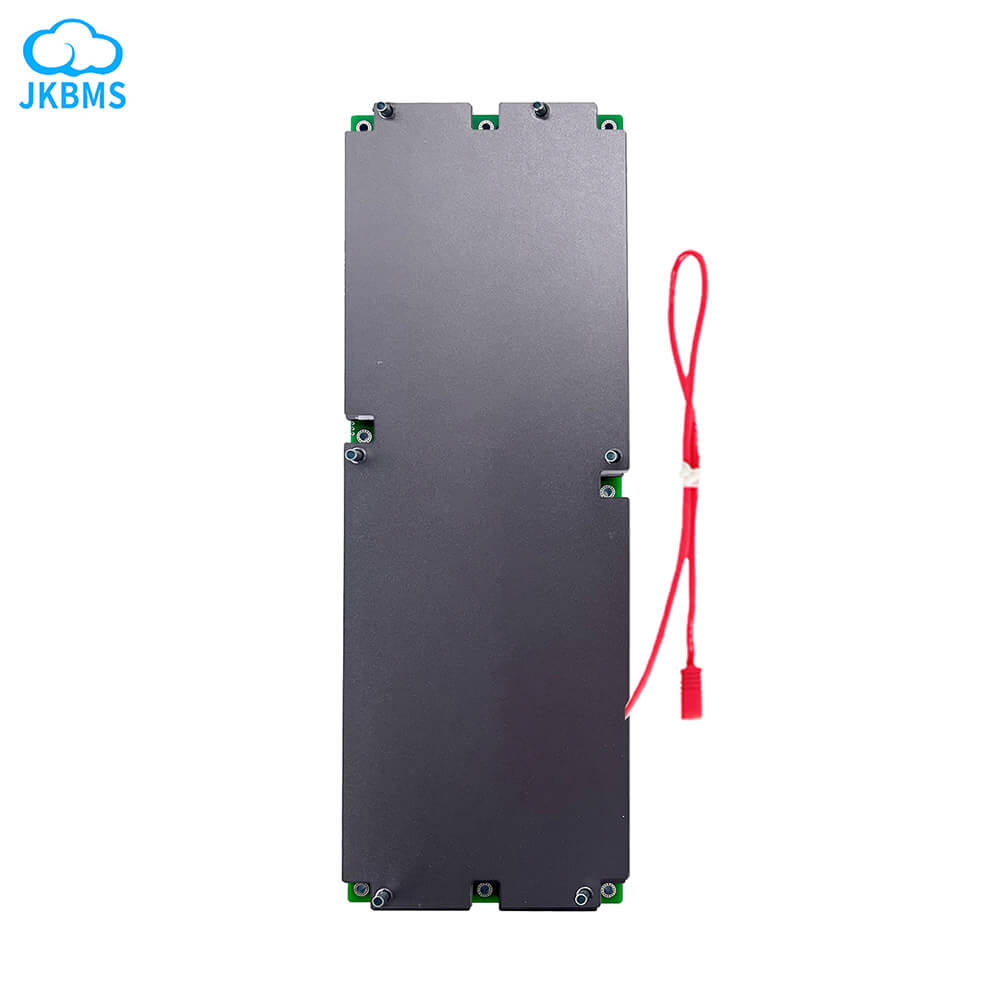

JK BMS 8S-16S 24V-48V 200A Continuous Discharge Li-ion/LiFePO4/LTO Smart BMS PB2A16S20P

The Ultimate Solution for Solar Energy Storage. The JK-PB2A16S20P is a high-performance ESS BMS designed for 24V/48V battery walls. It features a massive 2.0A active balancing current and supports up to 200A continuous discharge. With built-in CAN and RS485 communication, it is perfectly compatible with mainstream inverters like Deye, Victron, Goodwe, and Growatt.

The JK-PB2A16S20P is more than just a battery protection board; it’s a sophisticated energy management controller. Designed specifically for 8S to 16S (24V/48V) lithium battery systems, it ensures your energy storage wall operates at peak efficiency. Its flagship 2.0A active balancer can handle large-capacity cells (280Ah, 304Ah+) with ease, keeping cell voltage deltas to a minimum.

Key Technical Advantages:

• ● Seamless Inverter Integration: Equipped with dual RS485 and CAN ports, pre-loaded with multiple communication protocols to “talk” directly to your solar inverter for optimized charging.
• ● Massive Power Handling: Supports 200A continuous current (400A peak), ideal for high-power household loads and 5kW-10kW inverter systems.
• ● Stackable & Expandable: Engineered for scalability, allowing you to parallel up to 16 battery packs for massive storage capacity.
• ● Advanced Safety Suite: Featuring multi-level protection for over-current, over-voltage, low temperature (with heating support), and short circuits.

application
