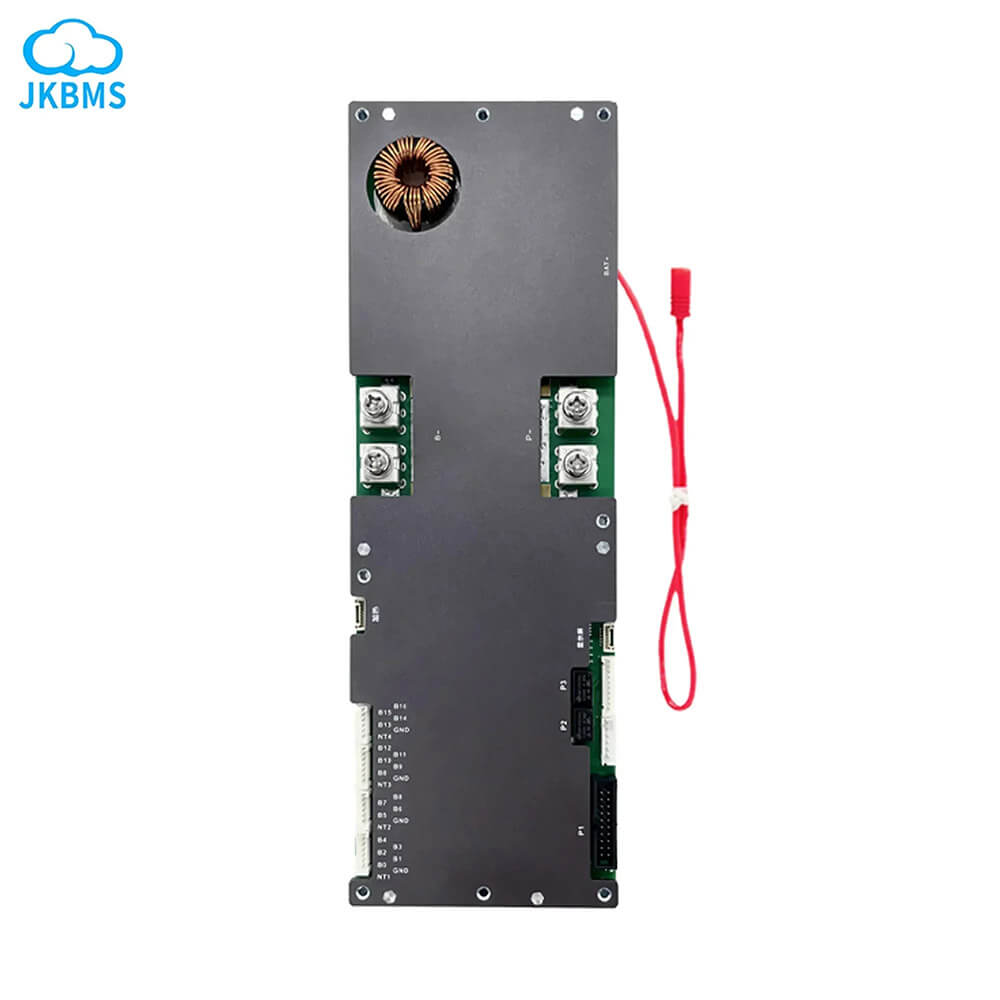

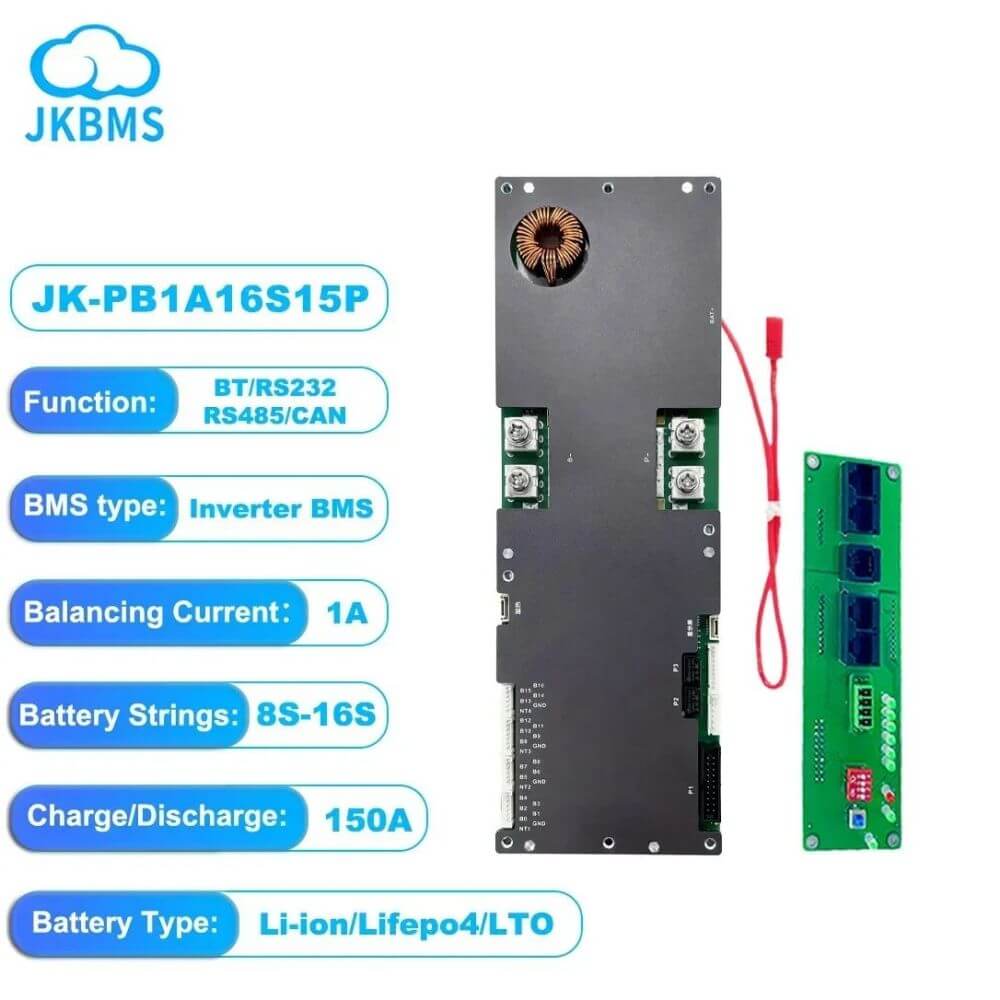

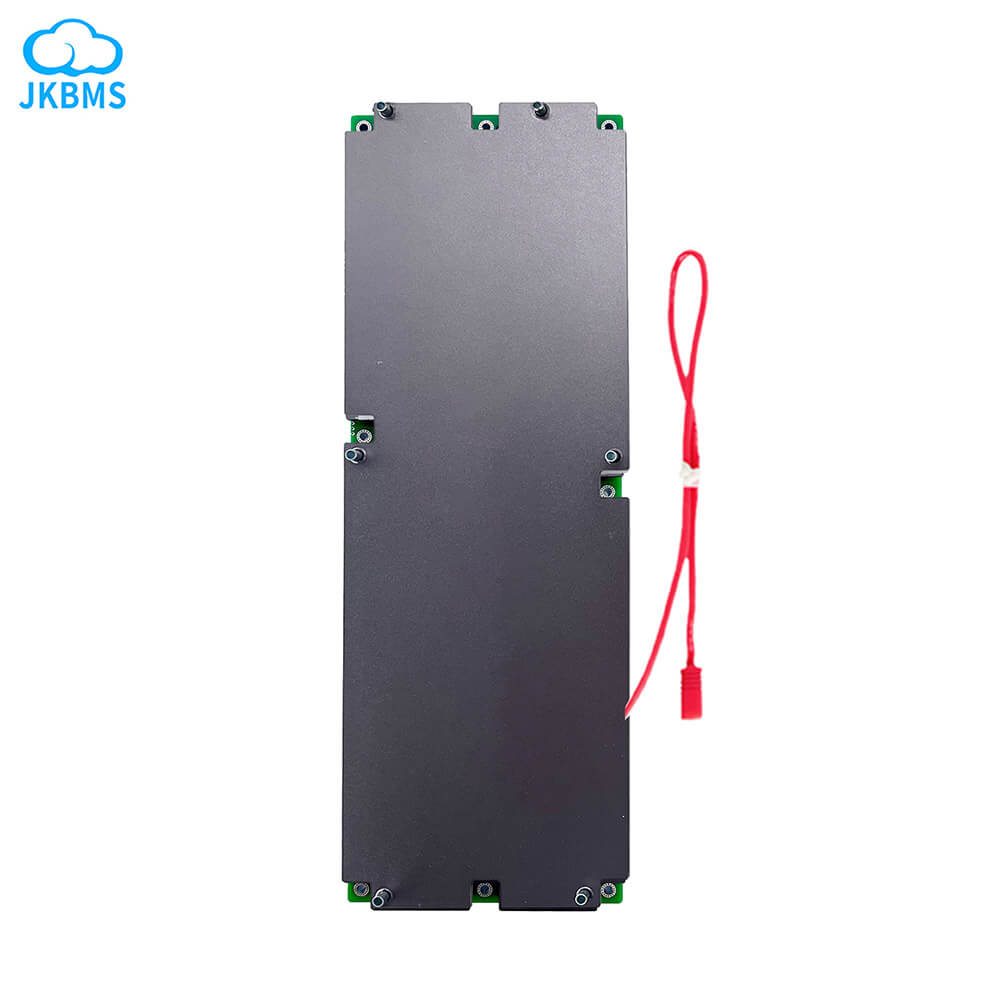

JK BMS 16S 150A Continuous Discharge Smart BMS PB1A16S15P

The JK-PB1A16S15P is a high-performance Smart BMS engineered for 8S-16S LiFePO4 battery banks. It combines a 150A continuous discharge capacity with an integrated 1A active balancer to keep your cells perfectly matched. Equipped with CANBus and RS485, it offers plug-and-play compatibility with major hybrid inverters for professional-grade DIY or commercial energy storage.

Advanced 1A Active Balancing

The JK-PB1A16S15P utilizes industry-leading active balance technology. Unlike passive BMS units that waste energy, this model transfers charge from higher cells to lower ones with a 1A balance current, significantly improving battery efficiency and usable capacity while preventing premature cell degradation.

Inverter-Ready Communication

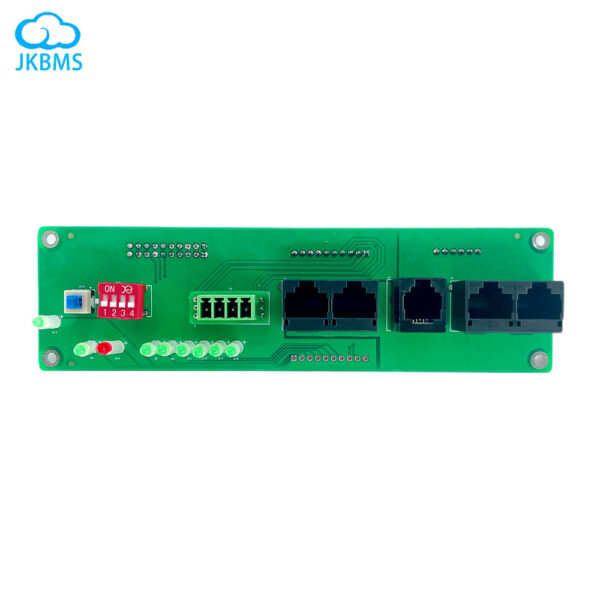

This BMS is designed for seamless integration into the modern solar ecosystem. With built-in CAN and RS485 ports, the JK-PB1A16S15P communicates directly with top-tier inverters including Victron, Deye, Growatt, Voltronic, and Pylontech, allowing for intelligent charging logic based on real-time battery data.

Key Technical Features:

• · Smart App Monitoring: Connect via Bluetooth to the JK BMS app to monitor SOC, voltage, and temperature in real-time.
• · Superior Protection: Comprehensive safety suite covering over-voltage, under-voltage, short-circuit, and multi-point temperature sensing.
• · High Current Handling: 150A continuous current rating, perfect for 5kW to 8kW inverter setups.
• · Compact ESS Design: Specifically form-factored for rack-mount and wall-mount battery enclosures.
