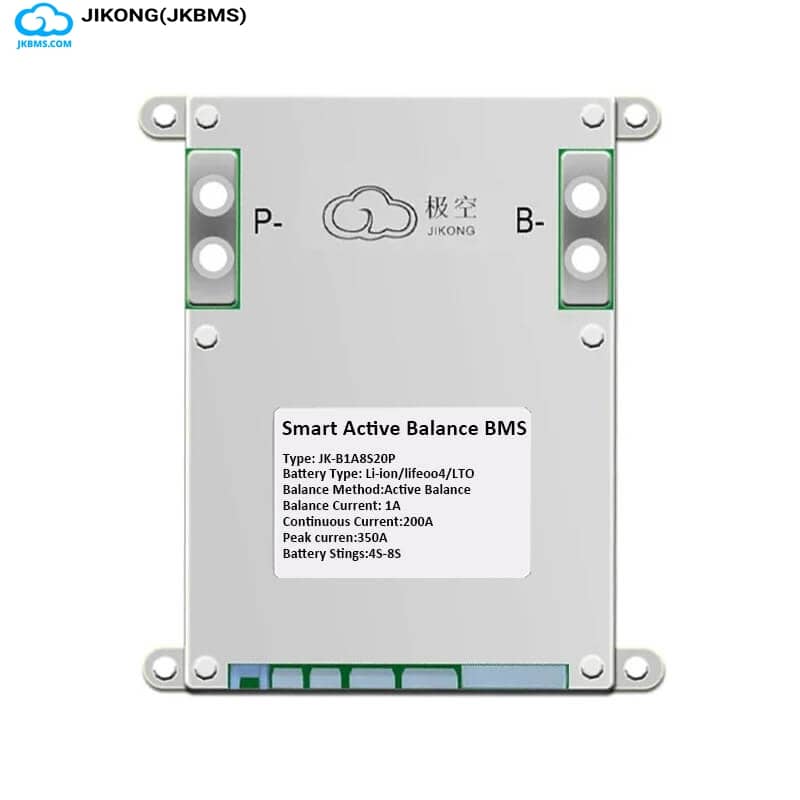

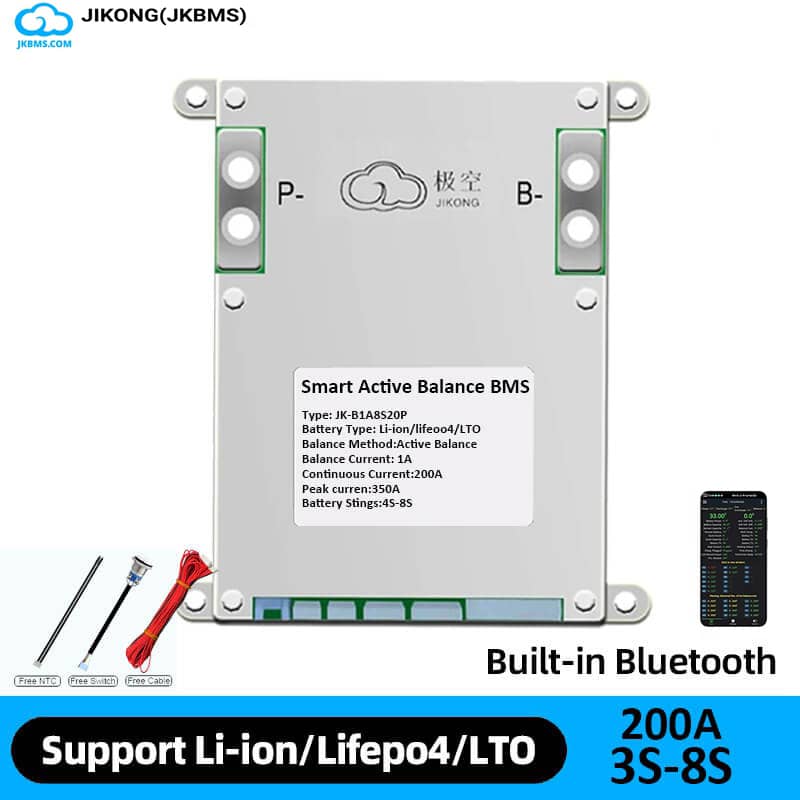

JK B1A8S20P 200A Smart Active Balance BMS

The JK-B1A8S20P is a professional-grade Smart BMS designed for 3S-8S LiFePO4 and Li-ion battery packs. It features a massive 200A continuous discharge rating and an integrated 1A active balancer. Equipped with Bluetooth for real-time app monitoring, it is the perfect solution for 12V/24V RVs, marine power, and off-grid solar systems.

Sustained 200A Performance with JK-B1A8S20P The JK-B1A8S20P is engineered for high-demand electrical environments. With a 200A continuous current capacity, it can easily handle 2500W-3000W inverters, making it the go-to choice for off-grid builders who need reliable power for appliances, tools, and electronics.

Why Choose the JK-B1A8S20P?

• · Efficient 1A Active Balancing: Unlike passive BMS units that waste energy as heat, the 1A active balancer redistributes charge between cells. This keeps your pack perfectly matched, extending its lifespan and maximizing usable runtime.
• · High-Current Build Quality: Designed with low-resistance MOSFETs and a high-efficiency thermal structure to manage 200A loads safely and consistently.
• · Smart Bluetooth Monitoring: Connect to the JK BMS App to monitor individual cell voltages, state of charge (SOC), and temperature. Customize your protection parameters to fit your specific battery chemistry (LiFePO4/Li-ion/LTO).
• · Comprehensive Safety Shield: Built-in protection against over-voltage, under-voltage, over-current, and short circuits, plus multiple temperature sensors to prevent thermal issues.

Technical Specifications:

• · Cell Support: 3S to 8S (LiFePO4 / Li-ion / LTO)
• · Continuous Current: 200A
• · Peak Discharge: 400A
• · Active Balancing: 0.1A – 1.0A (Energy Transfer)
• · Communication: Bluetooth (Built-in), Support for RS485/CAN modules

Dimension and Details

application
