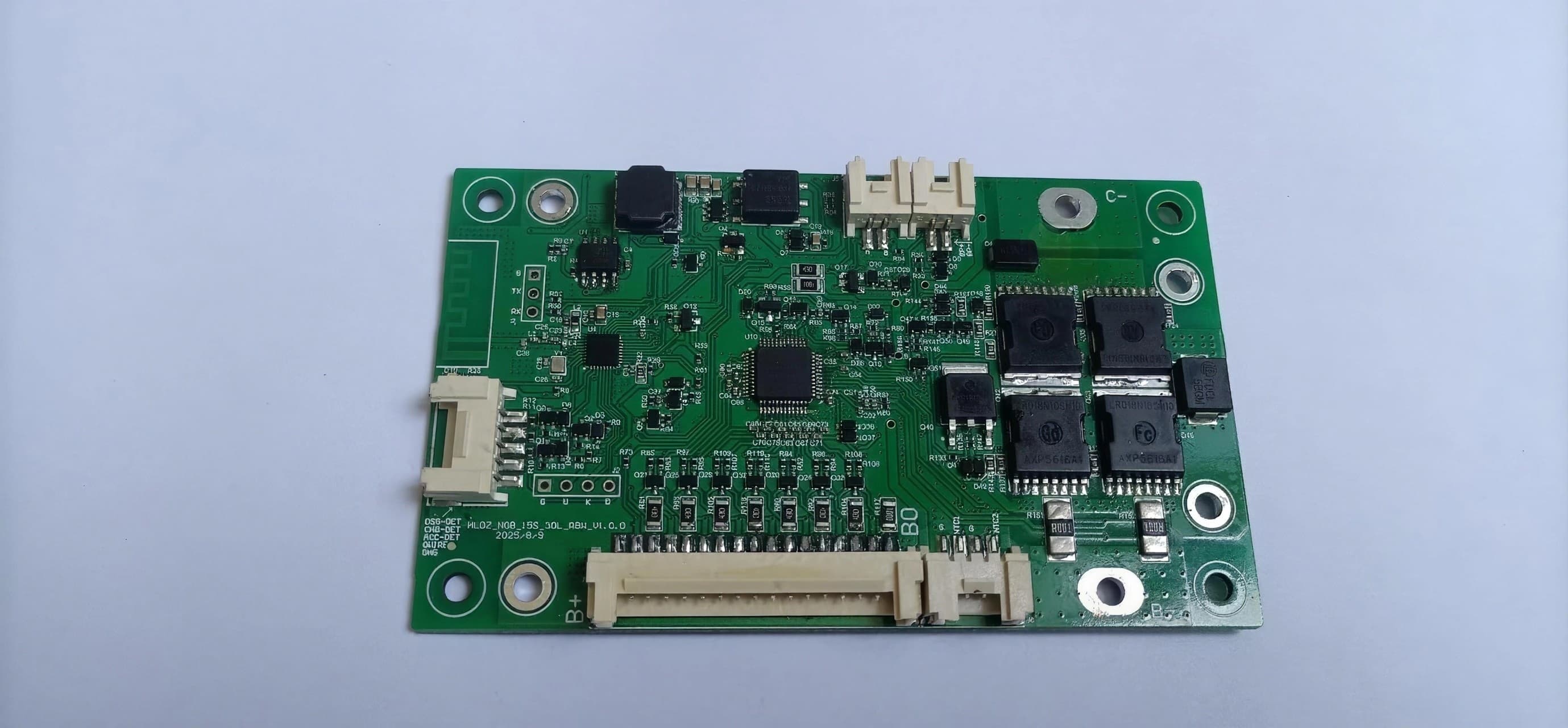

4–15S 60A Best BMS for LiFePO4 / Ternary Lithium Battery with Bluetooth

The BMS battery system is mainly designed for 4–15 series ternary lithium and lithium iron phosphate batteries, and is primarily applied in consumer electronics, light transportation equipment, and small industrial/commercial devices.

The system not only enables real-time monitoring and collection of battery status parameters (including the voltage of individual cells, pack terminal voltage, battery temperature, SOC & SOH, etc.), but also performs necessary analysis and calculations on these parameters to derive additional system evaluation metrics. Based on specific protection and control strategies, it ensures effective management of the battery and guarantees safe operation. At the same time, it provides cell balancing functionality, maximizing the consistency of individual cells during use, slowing down battery degradation, and reducing the rate of range loss.

In addition, the BMS undertakes the compliance functions required by the new national standards, including data recording and traceability. By storing operating states, fault information, and safety event logs, it provides standardized data support for battery type certification, production consistency verification, and after-sales quality traceability. As such, the BMS becomes a critical technological bridge between the battery itself and the requirements of the new national standards.

Function

• · Supports 4–15 series battery packs.
• · Real-time monitoring of single-cell voltage, total voltage, current, cell temperature, ambient temperature, and MOS temperature.
• · Provides protection functions such as single-cell overvoltage and undervoltage, total voltage overvoltage and undervoltage, charging and discharging overcurrent, cell high/low temperature, MOS over-temperature, and short circuit protection.
• · Equipped with passive balancing function to equalize unbalanced cells. Balancing start voltage and balancing voltage difference can be set via applet or host computer.
• ·Current integration function:
  • A. Supports charging and discharging current detection.
  • B. Battery capacity estimation function.
  • C. Charging and discharging cycle count calculation.
• · SOC measurement: Combines current integration with open-circuit voltage algorithm.
• · Multiple sleep and wake-up modes available.
• · Low-voltage shutdown function to prevent battery damage.

Specification

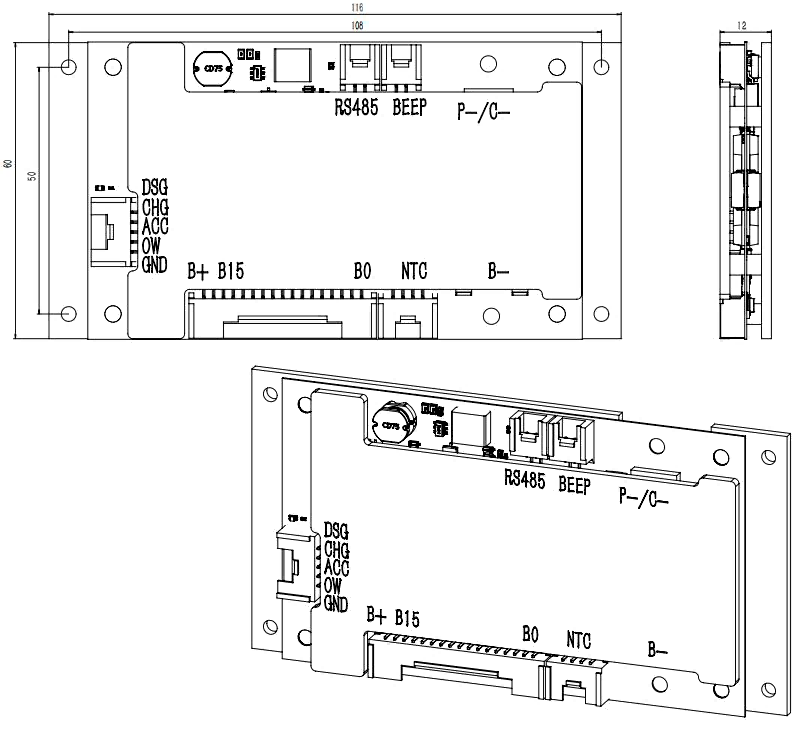

Dimension and Details

A Large Number of Spot, Offered at Highly Competitive Prices

This 4–15S 60A Bluetooth BMS is available in stock, offering fast delivery, competitive pricing, and direct manufacturer supply. It supports both small sample orders and large-volume purchases and is highly popular in India, Australia, Vietnam, and the Southeast Asian market.
