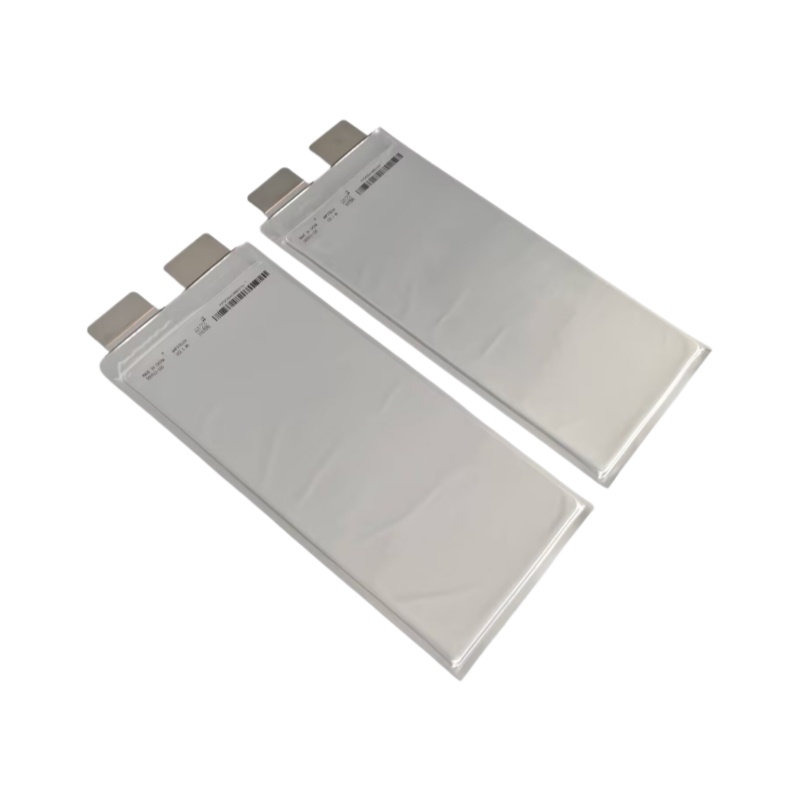

A123 LiFePO4 3.2V 37Ah Pouch Battery Cell
Product Details:
Place of Origin: China
Brand Name: A123
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 37.0Ah Nominal Voltage: 3.3V
- Internal Impedence: / Operating Voltage: 2.0~3.60V
- Dimension: 11.2*145*322mm Battery Weight: 983±10g
Product Description
A123's high-performance Nanophosphate® lithium iron phosphate (LiFePO4) battery technology delivers high power and energy density combined with excellent safety performance and extensive life cycling in a lighter weight, more compact package. A123 products have low capacity loss and impedance growth over time, allowing systems to meet end-of-life power and energy requirements with minimal pack oversizing.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- A123's patented Ultraphosphate® lithium ion chemistry
- High usable energy over a wide state of charge (SOC) range
- Excellent high pulse current charge/discharge capability
- Excellent abuse tolerance and superior cycle life
- High power over 4,100 W/kg and 9,100 W/L
Specification
| Item | Specification |
|---|---|
| Nominal capacity | 39.0Ah |
| Minimum capacity | 37.0Ah |
| Normal Charge/discharge cut-off voltage | 2.0~3.60V |
| Nominal voltage | 3.3V |
| Charging method | CC-CV (first constant current, then constant voltage) |
| Normal charge time | 1 hours |
| Discharge Specific power (W/Kg) | ≥4100W/kg RT,50%SOC,10S,-580.9A,RT |
| Charge Specific power (W/Kg) | ≥1800W/kg RT,50%SOC,10S,+580.9A,RT |
| Maximum continuous charge current | 370A (10C), RT |
| Maximum continuous discharge current | 555A (15C), RT |
| Maximum Pulse Charge Current | 555A (15C), RT |
| Maximum Pulse Discharge Current | 740A (20C), RT |
| Minimum. Discharge Cut-off Voltage, Pulse | 1.6V |
| Maximum. Discharge Cut-off Voltage, Pulse | 3.7V (10°C~60°C) |
| Maximum. Charge Cut-off Voltage, Pulse | 3.6V (-30°C ~10°C) |
| Cell Weight | 983±10g |
| Cell Dimension | Thickness: 11.17±0.20mm (under 14psi, 30%SOC) Width: 145.0±1.0mm (folding) Height: 322±1.5mm (excluding Tab height) |
| Operating Temperature | Charge: 0~55℃ (The current limit should follow the technical agreement) Discharge: -30 ~ 55℃ |
| Storage Temperature | ≥6 months: -40~45℃ ≤1 month: 45~60℃ ≤3 days: 60~65℃ (more details could be defined in TA) |

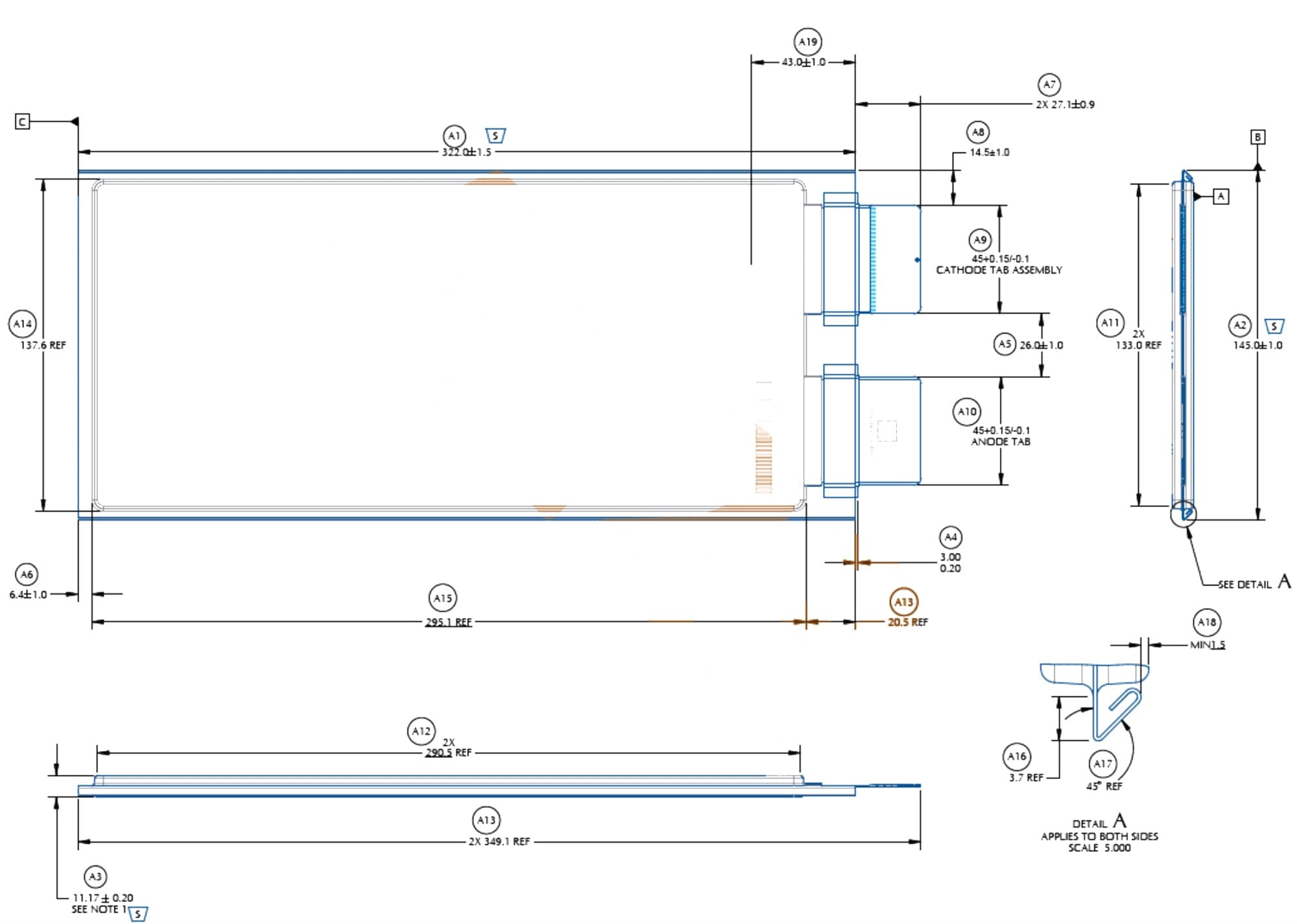

Dimension and Details
Applicaitons
MHEV and PHEV Passenger Vehicles / 48V Start-stop systems / Uninterruptible Power Supply
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
